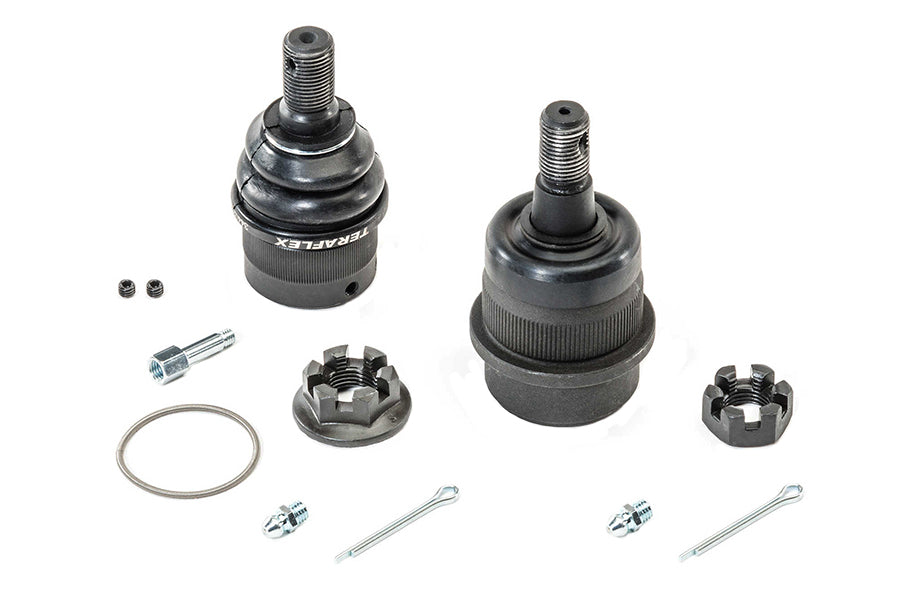

TeraFlex HD ball joints are engineered to handle the increased load caused by oversized tires and offset wheels. The upper ball joint incorporates hard sintered wear bushings to handle extreme side load demands without failure. The lower ball joint features a threaded top cap for adjustable preload and allows grease servicing without axle shaft removal, even with larger RCV shafts. A machined grease passage in the lower joint housing assembly provides lubrication access without affecting the ball joint load surface.

Upper ball joint features

• Extremely hard Sintered wear bushings to handle side load demands without failure
• Magnesium Phosphate coating to inhibit corrosion throughout
• 4140 chrome moly Ball/stud and a 1045 carbon steel housing
• Factory style serrated flange nut and grease fitting Lower ball joint features
• Hard alloy tool steel slotted wear plate for ball/stud to socket wear protection
• 4140 chrome moly ball/stud with magnesium phosphate anti-corrosion coating
• Factory style serrated flanged castle nut
• Adjustable end cap with lateral greasing access for easy on the Jeep servicing
• CR black Neoprene boot locked into position with both a spring as well as a spring steel ring

Note: Fits JK Wrangler Dana 30 & Dana 44 axles. We recommend ball joints without knurls as they will not score the inner knuckle and open up the bore. We also offer ball joint with knurls for ball joints that have a loose press fit in the inner knuckle due to repeated ball joint replacement or if knurled ball joints have been installed in the past.

Specifications

• Adjustable: Yes
• Axle Type: Dana 30 / 44
• Greaseable: Yes
• Material: Steel
• Qty: 2
• Rebuildable: No

Warranty: Limited Lifetime

Fitment: JK
