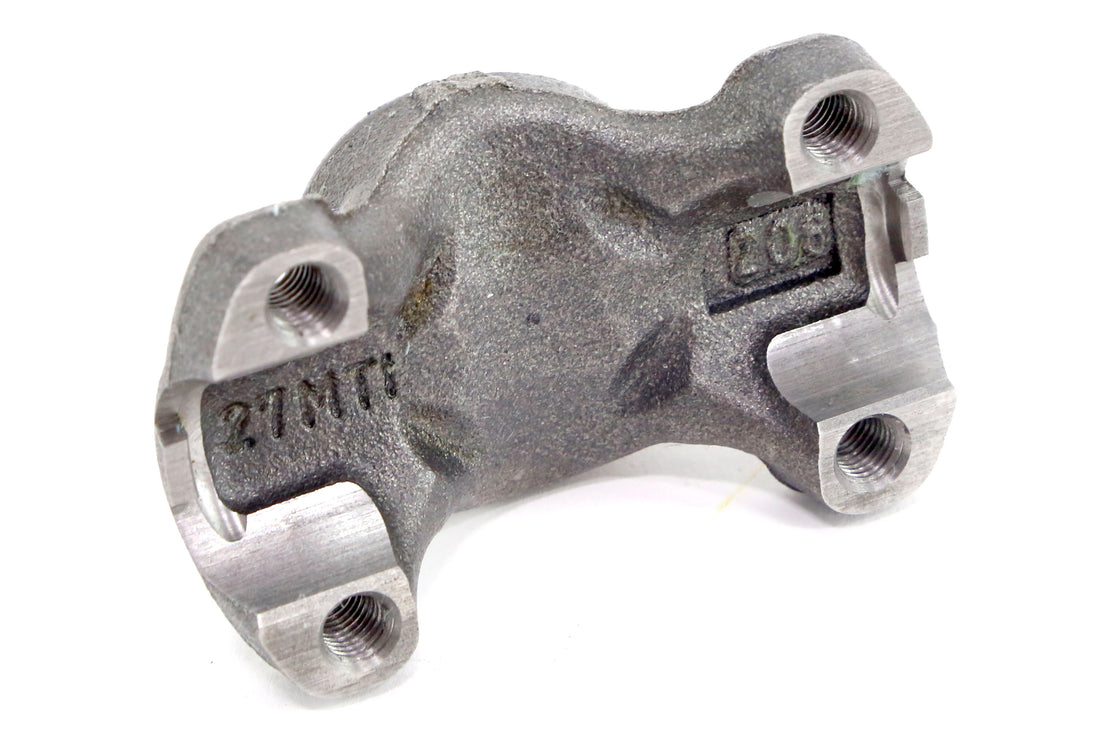

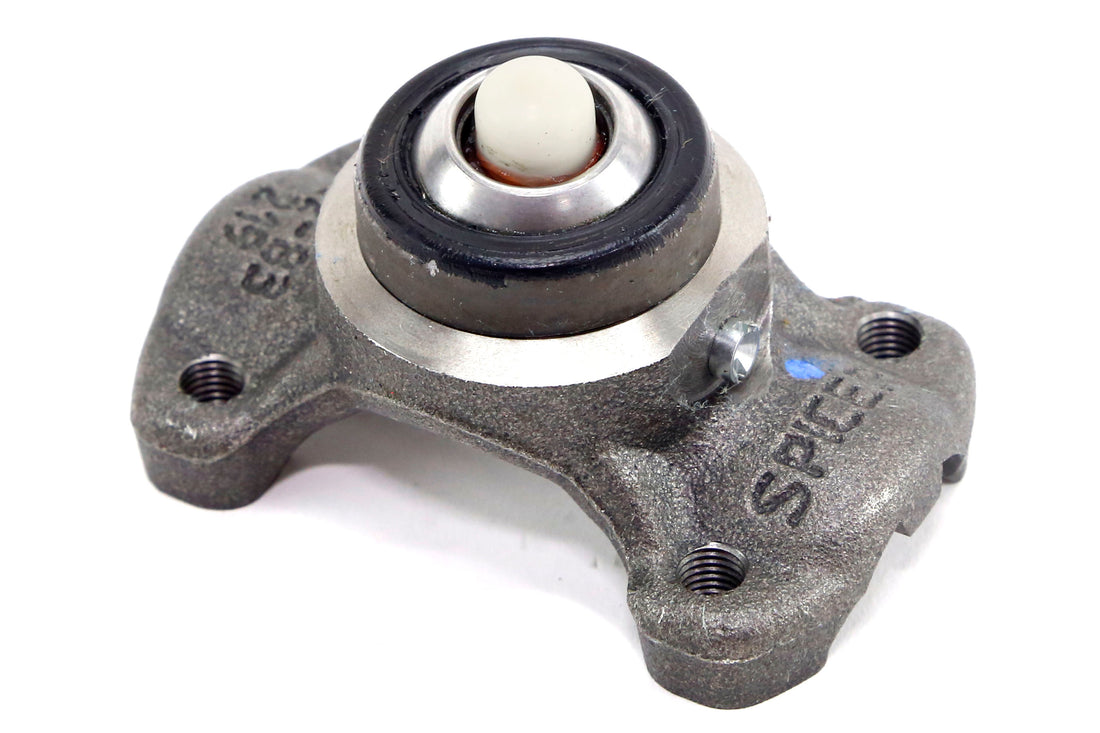

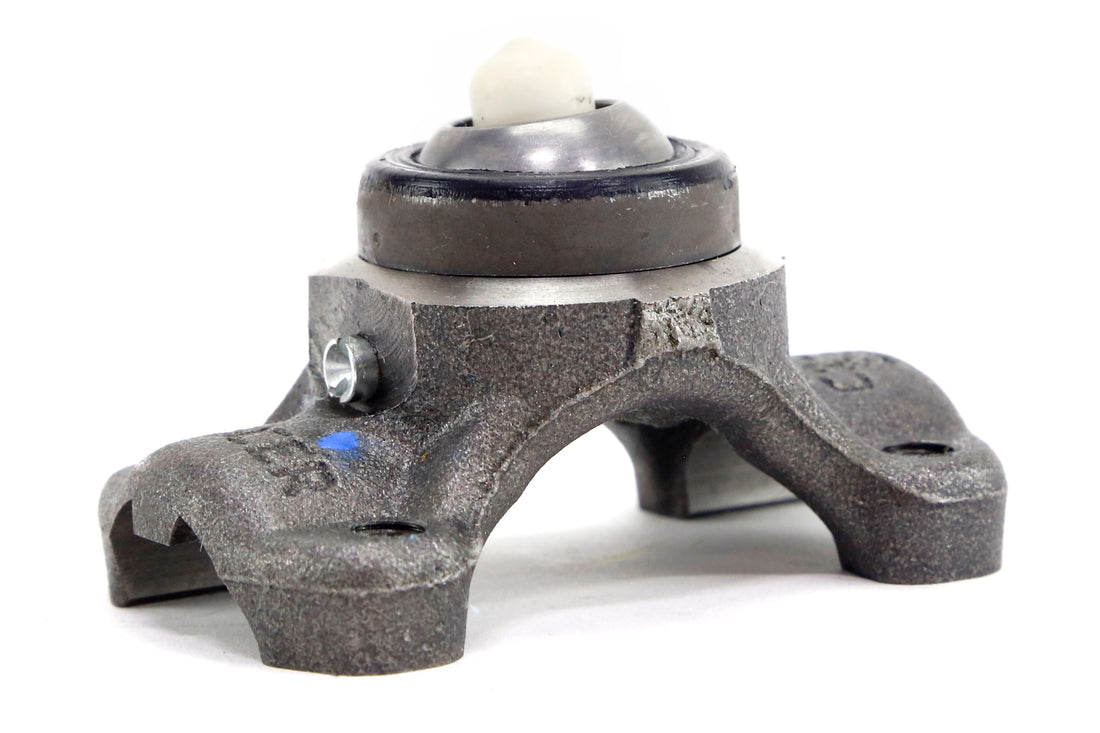

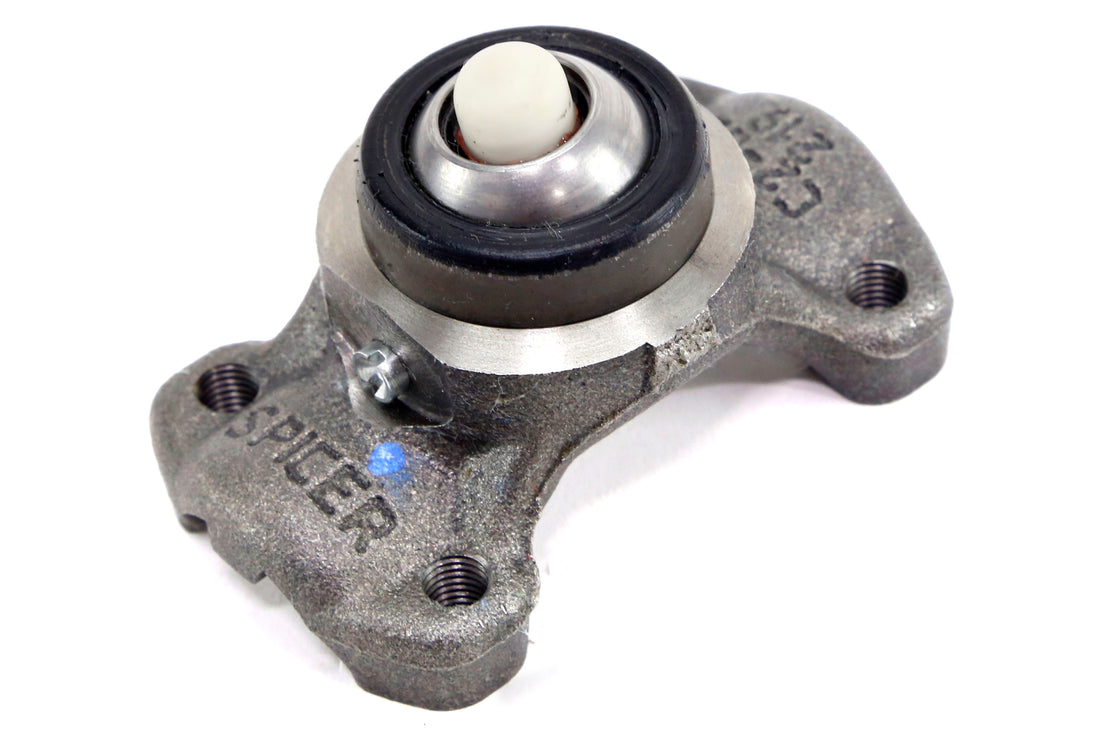

The Spicer Drivetrain Components 1310 Drive Shaft CV Socket Yoke Assembly has been designed to meet or exceed the demands of OEM quality to provide the consumer with a reliable product they can depend on.

This particular socket yoke assembly will fit 1310 series u-joint, and has a 3.218 bolt circle diameter. The hole pattern is 1.500", and the hole pattern height is 2.343". The center of the joint to end of the spline is 1.531", and the ball stud size is 0.500 ball stud size.

Key Fitment and Specifications:

• Series: Fits 1310 series U-Joints (1.062-inch bearing cap).
• Dimensions: 3-7/32 inches between locating tabs (3.219 inches).
• Component: Double Cardan CV Centering Yoke (greasable).
• Common Applications:
• Jeep: CJ5, CJ7, CJ8, Wrangler (TJ/YJ), Cherokee (XJ), Grand Cherokee (ZJ).
• Ford: Bronco (1966-1978), F-100/F-250, Ranger.
• Chevy/GMC: K10/K20/K30 Pickups, Suburban, Jimmy.
• Dodge: Dakota, Ramcharger, W-Series Trucks.

Specifications

• CV Yoke: 1310
• Location: Front
• Bearings Included: Yes
• QTY: 1

Warranty: 1 Year
