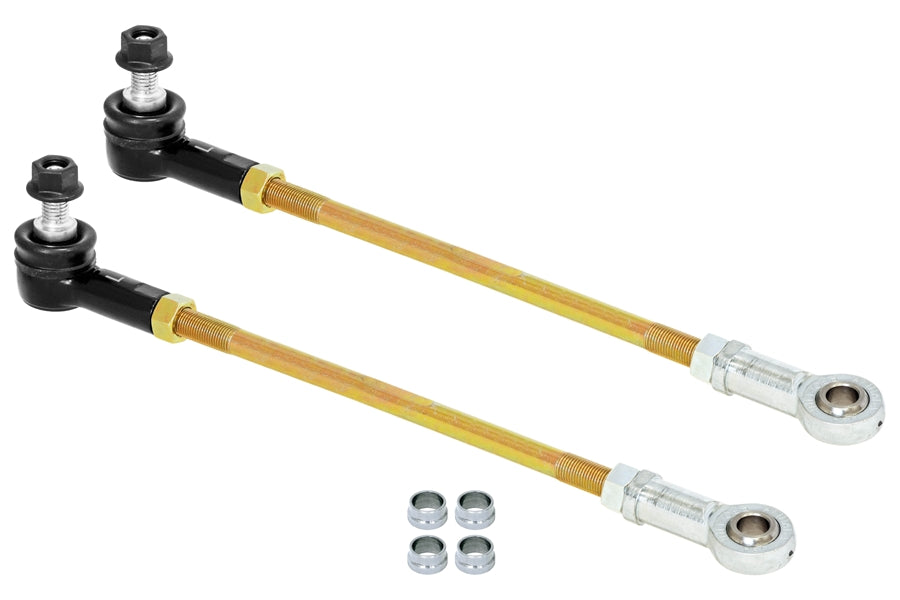

RockJock's Adjustable Sway Bar End Link Set features 12 1/2 in. long link rods and their high-end sealed rod ends at one end and thru-bolt heim joints at the opposite end. The rods feature 2 5/8 in. of 1/2 in.-20 LH thread and 2 5/8 in. of 1/2 in.-20 RH thread, providing adjustment as-is and extra thread, allowing you to cut them shorter as deemed necessary by your application. Link sets are included in their Antirock Sway Bar Kits but can be used universally in many applications to replace non-adjustable sway bar links.

Additionally, if you have changed the lift amount on your vehicle you may need a different length of sway bar links to accommodate your new lift. You can simply buy a completely new link set to accommodate your needs. The studded, sealed rod ends in this kit feature 12mm-1.75 RH thread studs and locking nuts and jam nuts are included. These links and sealed rod ends are a direct replacement for link sets that feature heim joints. This set also includes 4 misalignment spacers as we use this set in JT Gladiator rear applications.

Kit Fits:

• (Compatible with) JT Gladiator RockJock Sport Suspension Kit
• Universal Use

Kit Includes:

• (2)  12 1/2 in. Link Rods (gold)
• (2)  1/2 in.-20 LH Sealed End Link Rod Ends
• (2)  1/2 in.-20 RH Thru-Bolt Heim Joints
• (2)  1/2 in.-20 LH Jam Nuts
• (2)  1/2 in.-20 RH Jam Nuts
• (4)  Heim Misalignment Spacers

Gold Rod Specs.:

• 12 1/2 in. Long
• 1/2 in. Diameter
• 1/2 in.-20 LH Threads – 2 5/8 in. Long
• 1/2 in.-20 RH Threads – 2 5/8 in. Long
• Center Smooth Area – 7 1/4 in. Long

Adjustment Range:

• Closed – At maximum trimming of this rod (15/16 in. of thread left on each side and the ends and jam nuts screwed on until they meet the smooth area of the rod), C-C is 12.570 in.
• Extended – Uncut rods with ends installed safely adjust out to 15.945 in. C-C

Notes:

• These are optional, upgraded links that are compatible with our JT Gladiator Sport Suspension Kit, for use in the rear.
• Wrench flats:  gold rods - 11mm wrench, sealed rod ends – 18mm wrench,  heim joints - 19mm wrench,  jam nuts - 3/4 in. wrench.

Specifications

• Color: Gold
• Length: 12.50in
• Qty: 2

Warranty: 2 Year Warranty

Fitment: JT
