Features

• 1/4" thick plate steel
• 100% bolt-on design

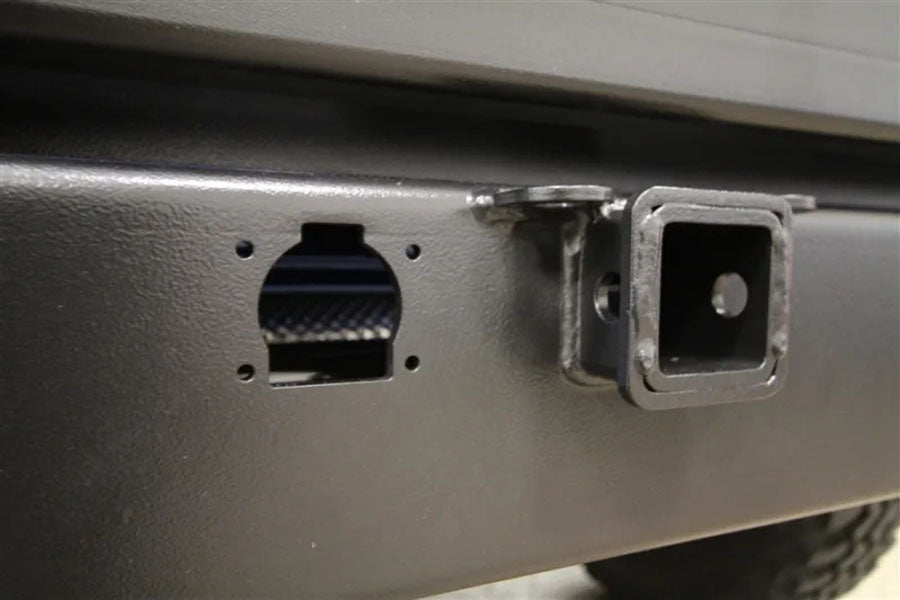

• Integrated 2" tow-rated receiver
• Integrated safety chain attachments
• High clearance tapered sides
• 4/7-pin cut out or block off plate for electronic harness included
• Powder coat included

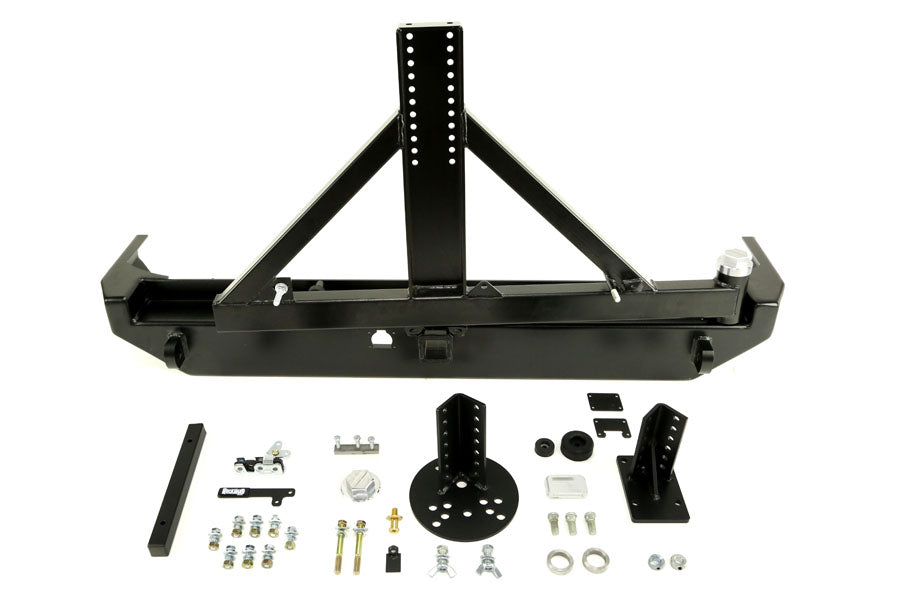

• All hardware included
• Hi-Lift jack underside recovery points
• 1" thick double welded recovery tabs included
• Spare tire relocation bracket (RH-5000-R) included

Specifications

• Weight: 150 lbs.
• 40" tire rated (38" with cargo basket/tank mounts)
• Width: 64"

Construction

• Laser cut / CNC bent / hand welded
• 1" thick recovery tabs welded front and back
• 1/4" thick plate steel construction

Rock Hard 4x4's proprietary dual-stage latching mechanism and "pre-load" design prevent vibration and wobbling to help ensure whether you are on the toughest off-road trail or loading gear into the back of your Jeep.

The secret to our tire carrier's success is our in-house designed and constructed greaseable hub assembly. Instead of a single bearing like, we use dual tapered bearings for smooth and consistently reliable operation.

Options

Longer off-road excursions require more cargo and fuel. RH4x4's design is the perfect platform for accessories. Their optional heavy-duty driver and passenger side Tank Mounts and Cargo Rack bolt on to the tire carrier to give you space you need for extended range or duration trips.

With the addition of the rear bumper comes the opportunity to also protect your exposed and critical muffler. RH4x4's bolt-on RH-5001-A Muffler Shield mounts to existing holes on our rear bumper giving you a plate of solid 3/16" steel armor. Once your muffler goes, your trip is over and it's time to call a tow rig. This simple addition to your RH4x4 rear bumper gives you peace of mind and increased capability.

What options are available?

• RH-2003-LT - Driver Side Tank Mount
• RH-2003-RT - Passenger Side Tank Mount
• RH-5001-A - Muffler Shield
• RH-2004 - Rock Rack Cargo Mount

Specifications

• Bumper Style: Full Width
• Color: Black
• Finish: Powder Coat
• Lights Included: No
• Material: Steel
• Shackle Tabs Included: Yes
• Tire Carrier Included: Yes
• Back Up Light Option: No
• Tire Capacity: 40.00in

Warranty: Limited Lifetime

Fitment: JK
