We believe armor should be stronger than the vehicle. We believe upgrades should be heavy duty, premium, and easy to install. If you do too, the ultimate rear bumper with tire carrier for the Bronco is here!

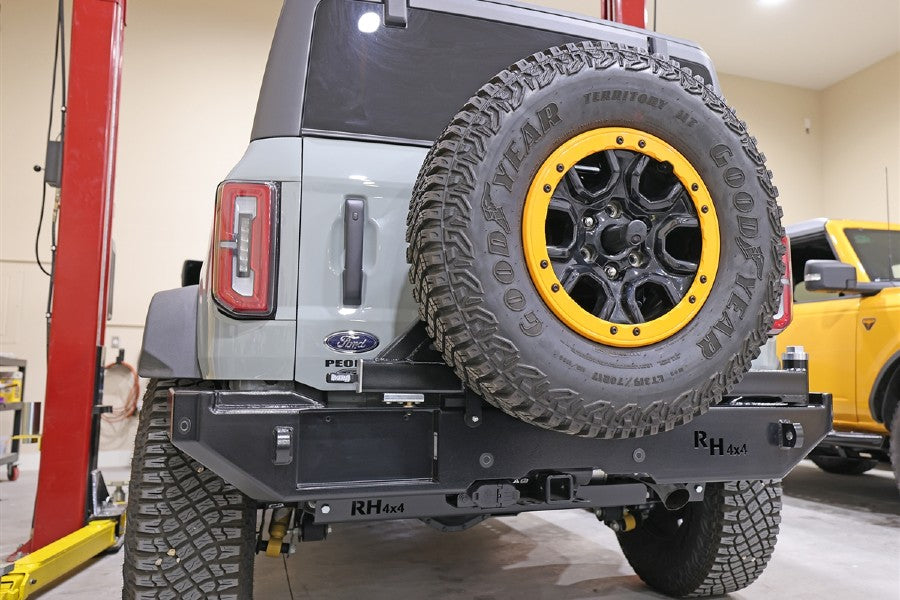

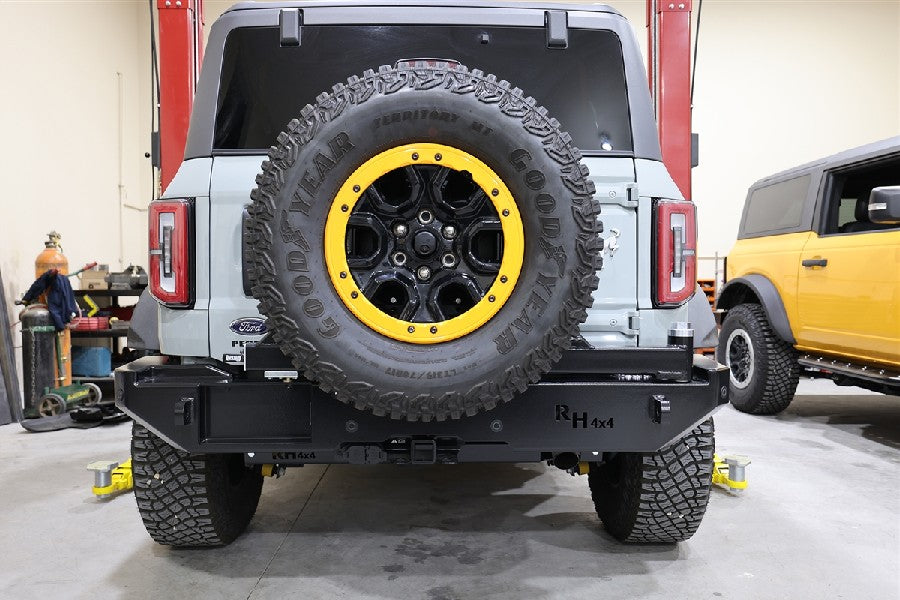

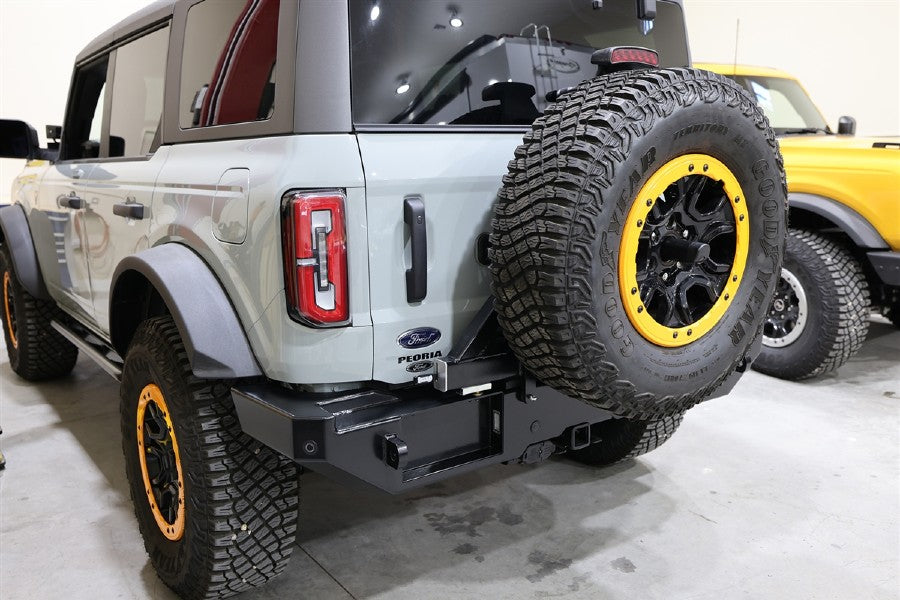

Fully loaded and incredibly strong, the Patriot Series Rear Bumper with Tire Carrier RH-60301 retains every single factory option moved to a 1/4" thick steel armor upgrade. Frame mounted takes the weight off your Bronco's body giving you the option to add accessories plus extends the life of your tailgate.

100% bolt-on installation makes removing your factory bumper and upgrading to a Patriot Series rear bumper doable by any level installer.

Features

• 1/4" thick plate steel
• 100% bolt-on design
• Frame mounted bumper/tire carrier (zero weight on tailgate/body)
• Adjustable spare tire mount
• Back-up camera compatible with included plug and play connector
• Parking sensor compatible (grommets and delete plugs included)
• Factory hitch compatible (if equipped)
• CB antenna mount included
• Included Tailgate Vent Plate
• Factory 3rd brake light compatible
• High clearance tapered sides
• 1" thick double welded recovery tabs included
• Powder coat included
• All hardware included

Specifications

• Bumper Weight: 144 lbs.
• Tire Carrier Weight: 76 lbs.
• 37" tire rated (37" with cargo basket/tank mounts)
• Distance from tailgate center to face of rear bumper: 3.5"

Construction

Rock Hard 4x4's proprietary dual-stage latching mechanism and "pre-load" design prevent vibration and wobbling to help ensure whether you are on the toughest off road trail or loading gear into the back of your Jeep.

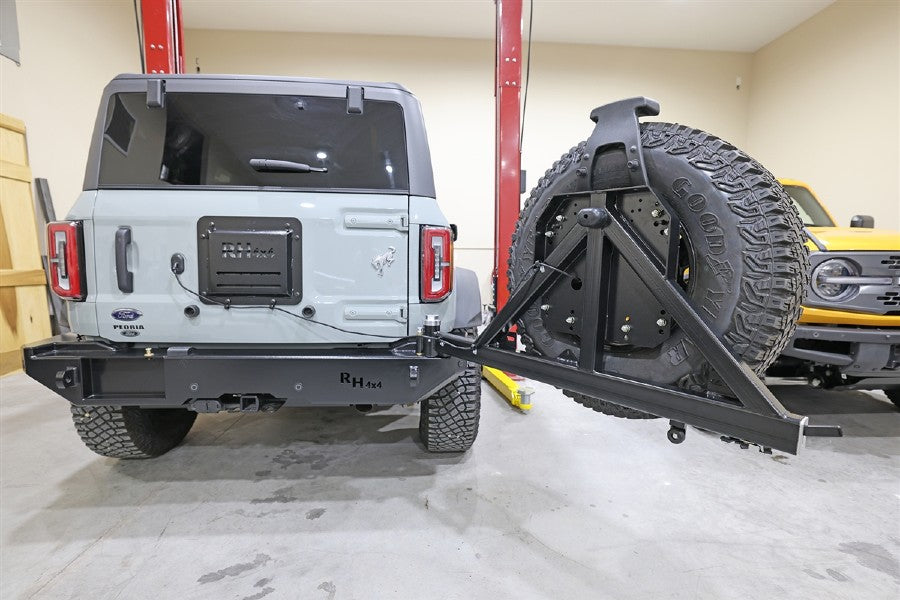

The secret to their tire carrier's success is their in house designed and constructed serviceable hub assembly. Instead of a single bearing we use dual tapered bearings for smooth and consistently reliable operation. Their dual-stage latch operates just like a car door with a safety catch to prevent accidental swing gate opening. Operation is effortless.

Installation

100% bolt-on install with zero cutting, trimming, or drilling required. All electrical connections use included Rock Hard 4x4 plug-and-play connectors.

Specifications

• Bumper Style: Full Width
• Color: Black
• Finish: Powder Coat
• Material: Steel
• Material Thickness: 1/4in
• Shackle Tabs Included: Yes
• Tire Carrier Included: Yes

Warranty: Limited Lifetime

Fitment: Bronco 2021+
