Made to order: This item ships directly from the manufacturer. Typical lead time is 30 business days before shipping. Lead times are estimates and not guaranteed.

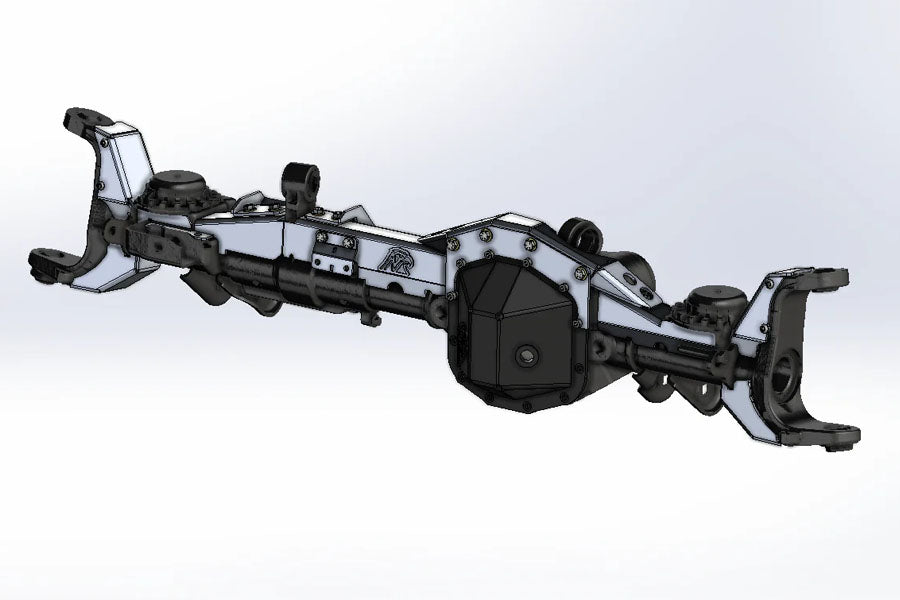

Looking to run larger than factory tires and hit some hard trails in your JL or JT? The M210 JL/JT Front Axle truss is the next upgrade for you! This truss reduces deflection of the axle housing, and ties in everything from one end to the other to prevent the dreaded bent or broken front axle.

Not only does this address the common failure point of the FAD Cast section (Front Axle Disconnect failure as seen above) found on factory JL/JT front axles, but this truss also goes above and beyond by going over the top of the differential to tie the driver side tube, passenger side tube and cast center section in to one another. This optional section is completely bolt on and removable to give you proper access with tools to your upper control arm bushing that is pressed into the housing above the differential.

This truss is laser cut and precisely formed from 3/16" steel for a great fit, and is designed to work with the M210/Dana 44 Advantek Axle found in most 2018+ Rubicon trim JLs and JTs. Jeep has begun to introduce changes to the housing center sections with the introduction of Mojave JTs/Xtreme Recon JLs and some minor modification may required on these later housings.

Note: This is a DIY kit that requires welding and fabrication. If you are not comfortable/experienced with welding to cast, please work with an experienced off-road shop with a competent welder to complete the process of welding this truss to your axle housing.

Additional Details

• *If you completed an engine swap on your JLU, a 1.5"+ lift may be required!*
• Products are designed and fabricated to fit vehicles that have varying tolerances from the factory, minor hand fitting may be required.
• Truss products are shipped bare metal and ready to weld! Bare metal products may have scratches or surface imperfections as a result of raw material handling, manufacturing, and fabrication. Additional finishing, sanding, and prep work may be required if you wish to also have them finished with a smooth powder coat or paint.

Includes:

• C Gussets
• Upper Bridge/Differential Tie In
• Rear FAD Tie in Bracket

Specifications

• Axle Location: Front
• Axle Type: Dana 44
• Install Method: Weld On
• Material: Steel
• Type: Truss

Warranty: Lifetime Structural

Fitment: JL/JT
