Made to order: This item ships directly from the manufacturer. Typical lead time is 30 business days before shipping. Lead times are estimates and not guaranteed.

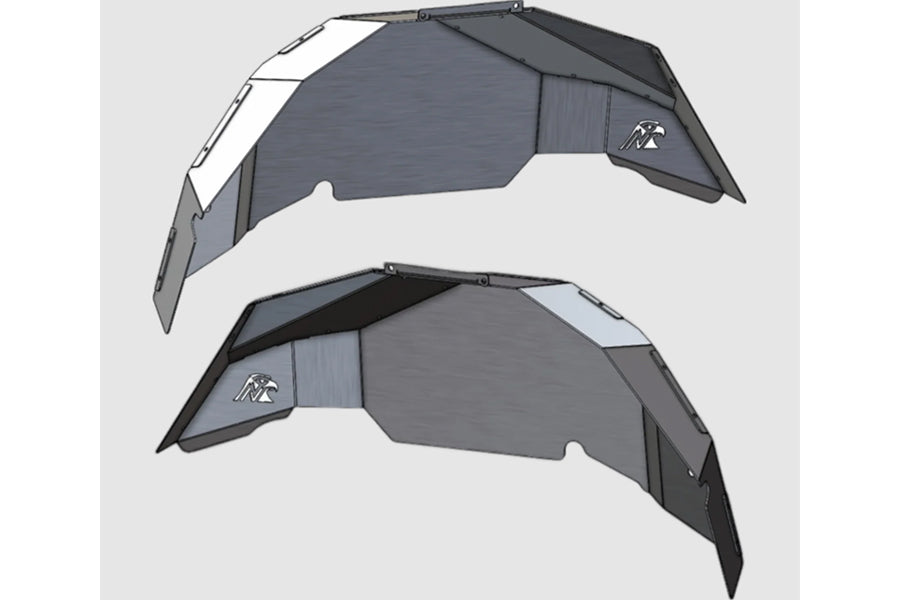

Looking to mount up 40" or larger tires on your JL? We designed this fender liner specifically to match our 40"+ Steel brackets (which are INCLUDED) that tie everything in the body back together after you do trimming to maximize clearance.

• CAD Designed with maximum tire clearance and suspension up travel in mind (Trimming IS REQUIRED for this version!)
• Tested specifically with 40"-42" tires for maximum clearance and trimming without removing structural integrity in the JL body.
• Allows for 3/8" wheelbase stretch to the rear - so you only have to trim the back of the wheel well; not the front. This prevents you from getting any water intrusion into the passenger compartment/JL tub!
• Laser Cut and Precision CNC Formed from 0.09" 5052 Aluminum
• Quick bolt together assembly required for initial installation
• Arrives ready to powder coat if desired
• Sold as 1 pair (left/right)
• Designed to work with shocks from Factory to aftermarket large body with multiple bypass/reservoir setups
• Designed to work with factory shock mounts or RKs extended shock/coilover rear mounts (see Shock Compatibility below)

The Details

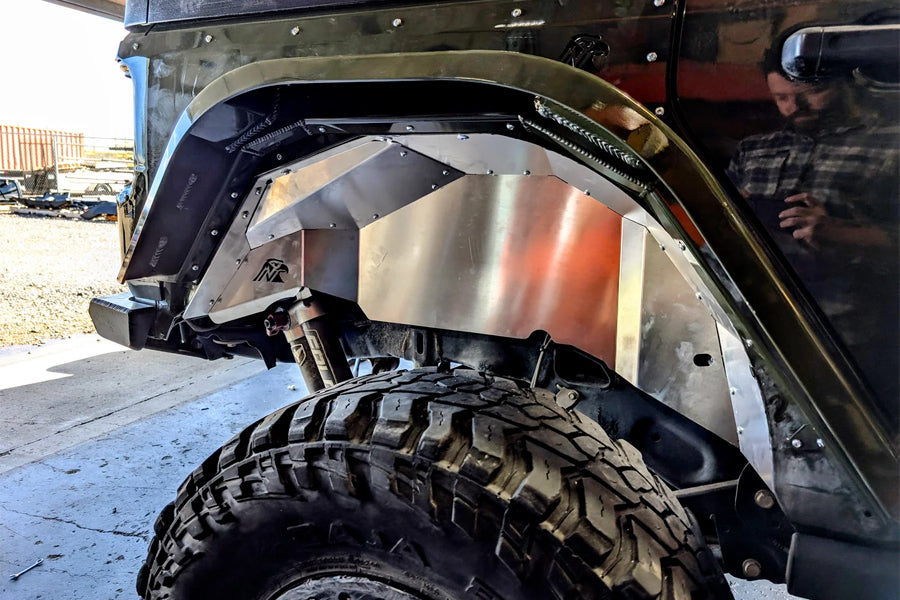

The factory black plastic "splash guards" you'll find in the wheel openings of your JL can leave a bit to be desired. Our new rear inner fender liners can be installed with factory fender flares, our JL Rear Fender deletes and are also compatible with JL Rear High Line Fender Flares!

The rear fender liners are laser cut in house from 0.09" thick 5052 Aluminum - which means they are 30% thicker than most 0.06" (16 Gauge) liners on the market, offering a bit more rigidity.

Initial installation requires a quick bolt together assembly, and all required hardware is included. Installation requires DRILLING and CUTTING.

Shock Compatibility

We have been collecting 3D scan data from multiple Jeeps over the past couple of years. This has allowed to CAD design these rear inner fender liners to fit with shocks from factory to aftermarket big body shocks with multiple bypasses with reservoirs; using factory mounts or even the relocated and extended shock/coilover mounts from Rock Crawler Suspension. The short of list of compatible shocks include factory, ADS, Bilstein, King, Falcon, Fox, and Rock Krawler/RRD Shocks. There are always new shock configurations coming out for the ever popular JL platform, so if you have any questions don't hesitate to reach out to us and ask if another new option fits!

4xE Compatibility

The Jeep Wrangler 4xE has additional lines on the rear passenger side leading to the evap canister just in front of the tail lamp; and these extra components are routed through the wheel well where this liner is installed. We have confirmed with a test fit that these DO work without modification on the 4xE PHEV models!

These are designed for maximum up-travel, however they are designed with Rubicon width tires/wheels in mind. If you are running JL "Sport"/Non-Rubicon width axles, either additional offset or some trimming may be required to clear the rear tires at full stuff.

If you are running Rubicon width or even wider axles, clearance is typically increased between the tire and inner fender liner, and should result in no rubbing and no modifications required.

Specifications

• Install Method: Bolt On
• Location: Rear
• Material: Aluminum
• Qty: Pair
• Type: Fender Liner

Warranty: Limited Lifetime
