The RockJock Modular Extreme Duty JL/JT Tie Rod End Cartridge features a taper that fits the steering knuckle holes (only) on factory or RockJock Jeep JL & JT outer steering knuckles.

These cartridges are used in conjunction with our various Modular Extreme Duty rod end forgings.

Kit Fits:

• Jeep JL Wrangler Unlimited (4-door) – All Models w/ factory or RockJock outer steering knuckles
• Jeep JL Wrangler (2-door) – All Models w/ factory or RockJock outer steering knuckles
• Jeep JT Gladiator – All Models w/ factory or RockJock outer steering knuckles

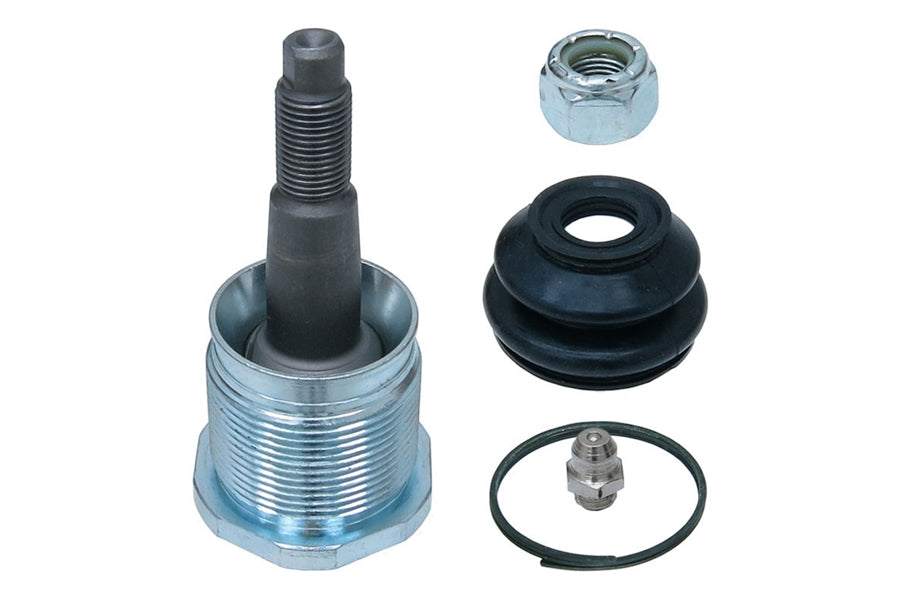

Kit Includes:

• (1) Tie Rod End Cartridge
• (1) Articulating Style Boot
• (1) Boot Retaining Ring
• (1) 9/16 in.-18 Thread Rod End Nyloc Nut
• (1) Zerk Fitting

Cartridge Specs.:

• JL/JT Tie Rod End Specific Taper (only fits JL/JT steering knuckle taper)
• 9/16 in.-18 Thread (on the top of the pin)
• 1 3/4 in.-12 Thread (on the cartridge body)
• 2 in. Hex (for removal & installation)

Notes:

• Taper fits JL & JT steering knuckle taper on factory or RockJock knuckles only.
• When using in a tie rod application, use our stabilizing tie rod end boot
• Requires the use of our Removable Cartridge Tie Rod Ends wrench, or a 2 in. wrench or socket for removal or installation
• Installation Torque Spec. = 250 ft. lbs.

Specifications

• Color: Bare
• QTY: 1 Kit

Warranty: 2 Year Warranty

Fitment: JT/JL
