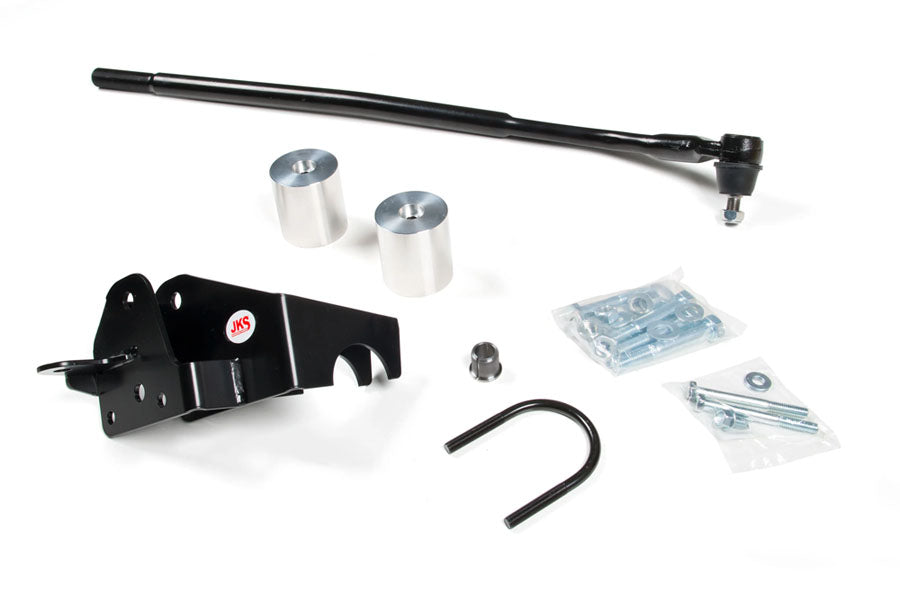

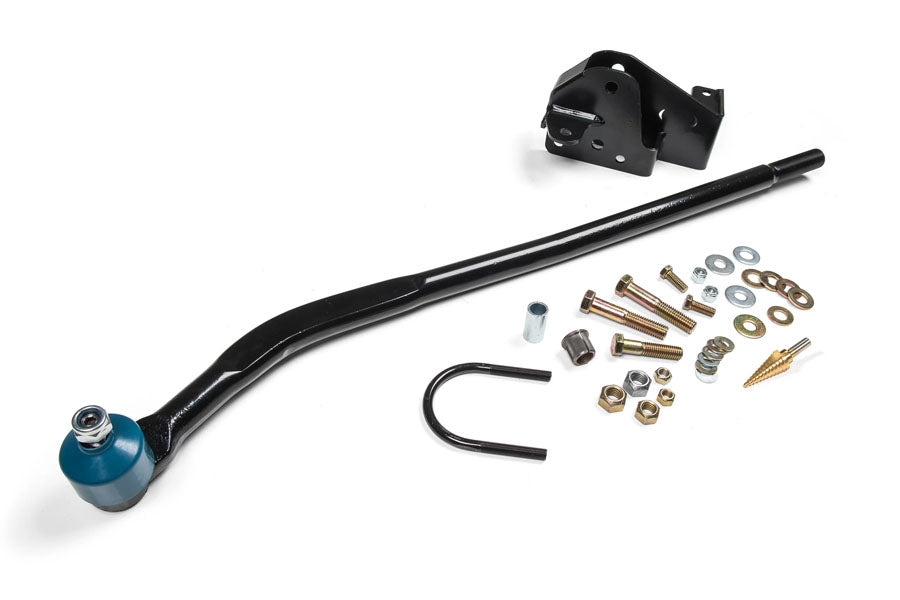

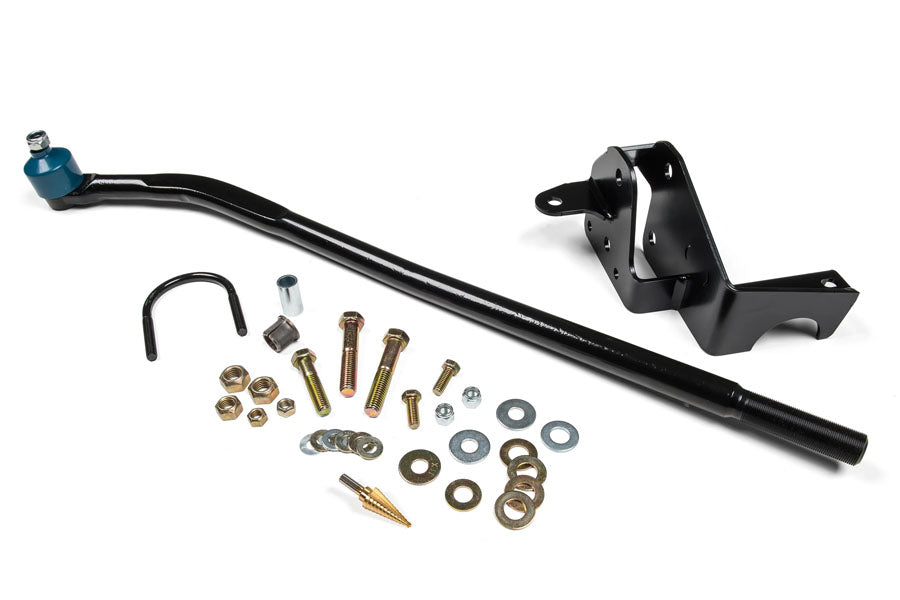

JKS Manufacturing's Drag Link Flip kit for JK Wranglers consists of a new drag link, a Track Bar bracket and a tapered steering arm insert. The design flattens out steering angles with lift heights of 3" and above, while providing correct geometry to increased droop travel. Bringing angles back to stock with the increased ride height of a lift removes the bump steer commonly associated with lifted solid axle suspensions. Drilling is required with the supplied 7/8" step bit. 3" tall front aluminum bump stop extensions are necessary for proper clearance at full bump. JKS1130 extensions available separately.

Features

• Provide better performing, solid steering feel.
• Flattens out steering angle when combined with 2" lift or more.
• 7/8" Step Drill Bit Included

Notes:

• For use on LHD JK models with at least 2" of suspension lift
• Requires 3" of front bump stop extension, JKS1130 available separately
• Should not be combined with other track bar relocation system
• Can be used with factory replacement adjustable track bars
• To be used with factory pitman arm for proper geometry
• Requires 17" diameter wheel or larger, with 4.75" backspacing or less

Specifications

• Adjustable: Yes
• Drilling Required: Yes
• Ends Included: No
• Install Method: Bolt On
• Material: Steel
• Required Lift: 2in
• Brackets Included: Yes
• Color: Black

Warranty: Limited Lifetime

Fitment: JK
