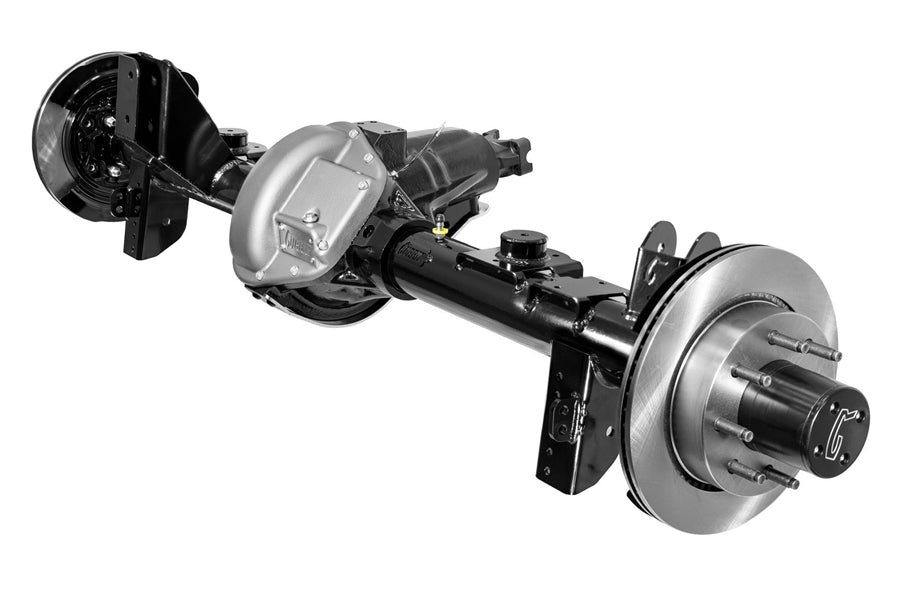

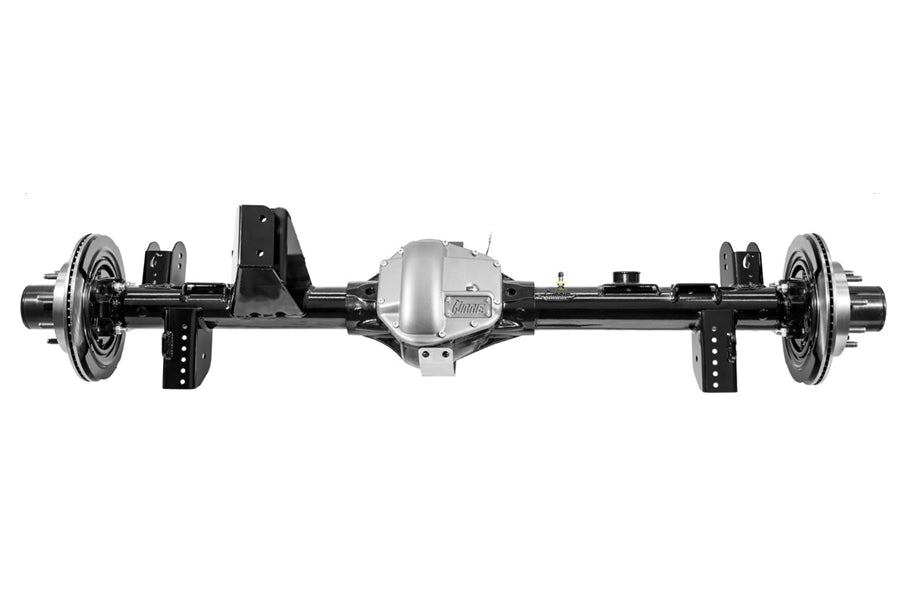

The Currie 70 Platinum rear axle for the JL Rubicon 392 is designed for the demands of all-wheel-drive and Hemi torque. Out back, the 70 Platinum features 4” axle tubes and full-float 40-spline chromoly axles to handle the massive power of the 392 Hemi. If you seek out the most challenging routes and toughest obstacles to conquer, the 70 Platinum axle is a natural choice.

Currie 70 Platinum Axle Details:

• Currie Exclusive High-Pinion 70 Rear Axle
• Competition-Grade 10.5 in. Polished Gears with 35-Spline Pinion Shafts Rear
• 40-spline Full-Float Rear Axles Deliver Ultimate Reliability
• 13.75” Rear Vented Rotors Provide Abundant Stopping Power
• 70-Inch Width Provides Improved Clearance for Large Tires
• 8-Lug Bolt Pattern Expands Wheel Options

Currie 70 Platinum Features:

• High-Clearance Center Section with Rotated Cover Improves Obstacle Slide-Over
• High-Pinion Design Raises the Driveshaft By 2” for Additional Clearance
• Ring Gear Load Bolt Prevents Gear Deflection to Deliver Maximum High-Pinion Strength
• High-Volume Flow-Thru Pinion Oiling System Keeps Bearings Bathed in Cool Oil
• Rock Slider Low-Friction Skid Plate Sides Over Trail Obstacles with Ease
• Platinum Finished Diff Covers and Gloss Black Powder Coat Housing are Exclusive to the Platinum Series

Specifications

• Axle Style: Full Float
• Axle Type: Dana 70
• Bolt Pattern: 8x6.5
• Brakes: 13.75in
• Ratio: 5.38
• Spline Count: 40
• Width: 70in

Warranty: 2 Year Warranty

Fitment: JL 392 Only
