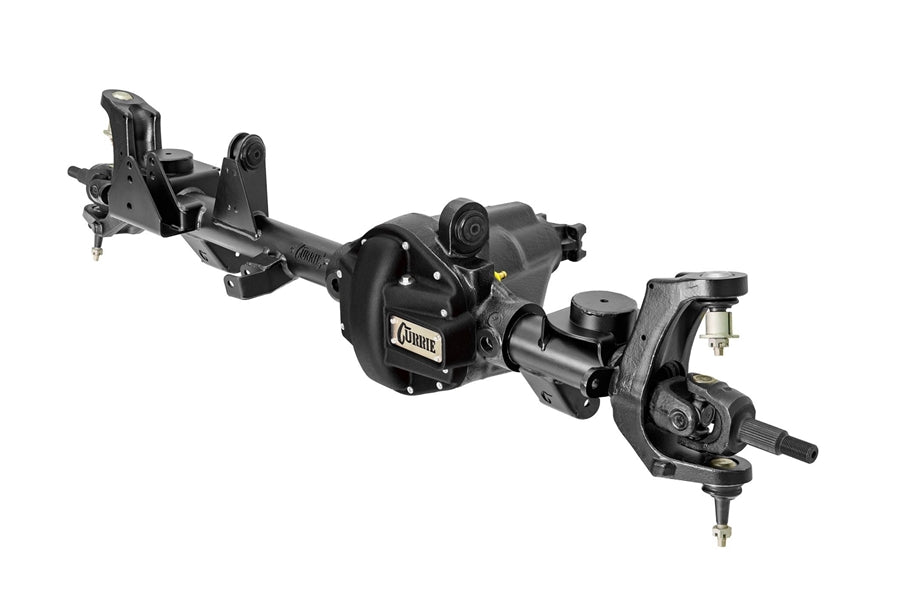

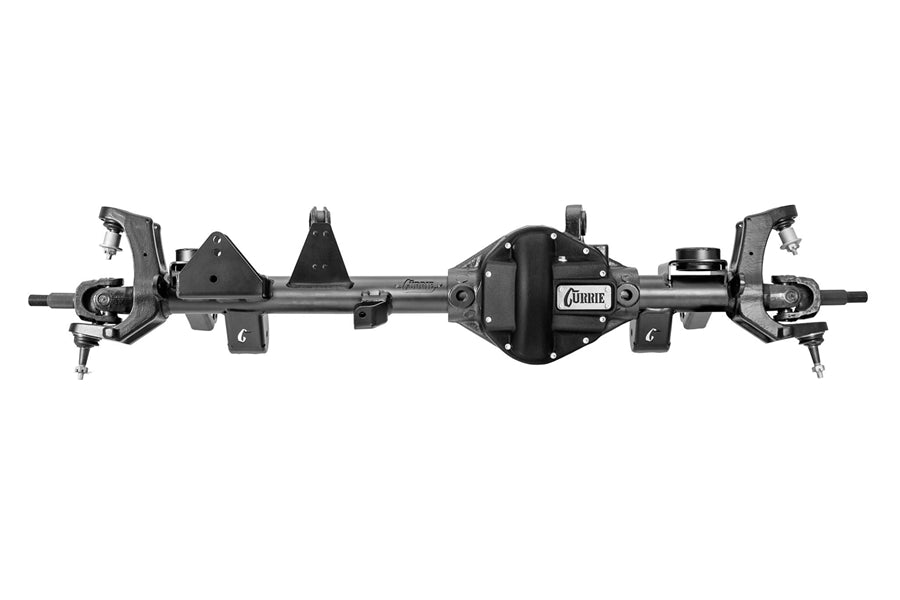

The Currie 44 high-pinion front performance axle is a direct bolt-in assembly for 2020 and newer Jeep Gladiator Vehicles. Featuring a significantly stronger center casting, axle tubes, forged knuckles, and chromoly axles, the Currie 44 is designed for heavy off-road with 37-inch tall tires.

Currie 44 Features:

• 68 in. Factory Gladiator Rubicon Width
• 68 in. JL Rubicon Width (+1.5 in. Over Non-Rubicon Models)
• Currie High-Pinion Reinforced Center Section
• 3 in. Diameter, .5 in. Wall DOM Axle Tubes
• Currie Forged Inner Knuckles
• 4340 Chromoly Axles Inner and Outer Axles
• Steering Geometry and Brackets Setup for Lifted Vehicles
• Uses Proven and Readily Available JK 44 Gears and Locker
• Fully Bracketed Axles Feature Satin Black Powder Coat Finish for Long-Lasting Protection
• Retains the Vehicle's Stock Steering Knuckle Assemblies, Brakes, and Wheels

Specifications

• Center Section - Currie 44 high-pinion nodular-iron center section with thicker walls and webbing
• Gear Set - Larger/stronger Dana 44 8.8” late model JK ring and pinion set
• Pinion Yoke - 1310 (stock size) pinion companion flange
• Differential Cover - Currie nodular-iron cover with gasketed fill plug with dip stick
• End Forgings - Currie heavy-duty forged steel inner C’s
• Axle Tubes - 3 in. diameter, .5 in. wall DOM tube
• Axles - Currie Performance 4340 chromoly 30/32-spline inner/outer axles
• Suspension Brackets - Heavy gauge 3/16” laser cut steel brackets
• Control Arm Mounts - Upper control and lower control arm mounts are 3/16 thick, one-piece construction; lower mounts feature an integrated skid plate
• Geometry - Optimized for stock height or lifted vehicles with 5 degrees of pinion angle to reduce driveshaft angle and 5 degrees of caster for improved steering
• Width - 68-inches between wheel mounting surfaces (stock Gladiator JT width)
• Wheel Bolt Pattern - 5 on 5 inch with 1/2 inch studs (standard Gladiator JT pattern)
• Oil Capacity - 1.5 quarts of 75W-140 synthetic gear oil (API GL-5 Rated)
• Finish - Black satin powder coat

Notes

Front Axle Disconnect (FAD): This axle assembly eliminates the factory FAD and requires a computer programmer, such as the Tazer Mini or Tazer Lite, to disable the factory sensor and turn off the FAD warning message.

Outer Knuckle Assemblies: The Currie 44 is designed to reuse the complete stock Gladiator outer knuckle assemblies from the ball joints out (knuckles, hubs, disk brake calipers, and rotors)

Overall Width: Axle width is 68.0 inches (stock Gladiator Rubicon) between wheel mounting surfaces

Vehicle Lift: If using the factory height suspension or a leveling kit without bump stop spacers, an aftermarket track bar is required to clear the differential cover. The RockJock 4x4 track bar RJ-9120FJLF provides ample clearance.

Tie Rod: If the vehicle came stock with a narrow-track front axle (66.5 inches), a Rubicon width tie rod is required

Builder Series: Housings do not include brackets; they are intended for customers or shops that will be fabricating the required brackets

Tire Size: Recommended maximum 37-inch tire size due to the inherent limitations of the stock brakes, wheel bearings, and axle u-joints

Specifications

• Axle Type: Dana 44
• Bolt Pattern: 5x5
• Ratio: 5.13
• Tubing Diameter: 3.0in
• Width: 68in

Warranty: 1 Year Warranty

Fitment: JT/JL Rubicon
