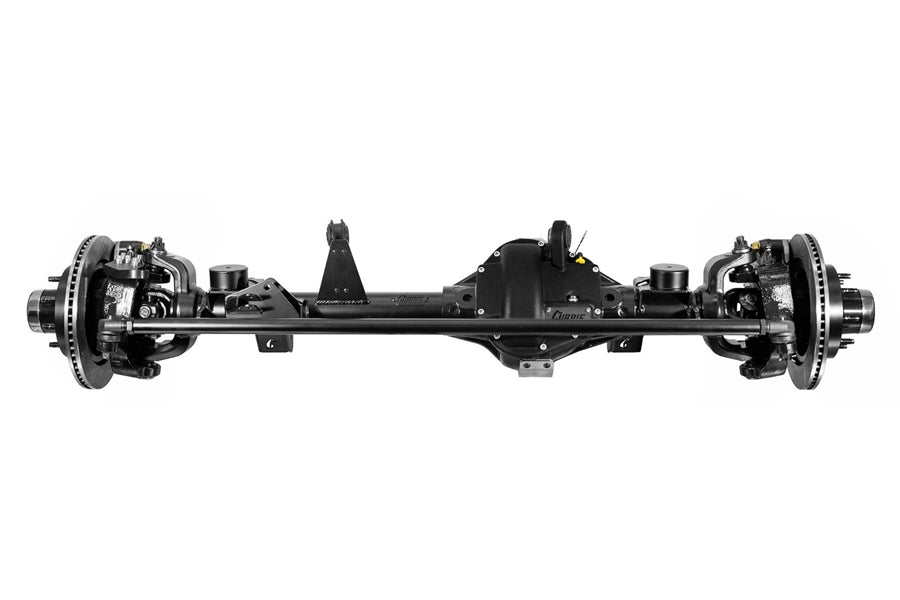

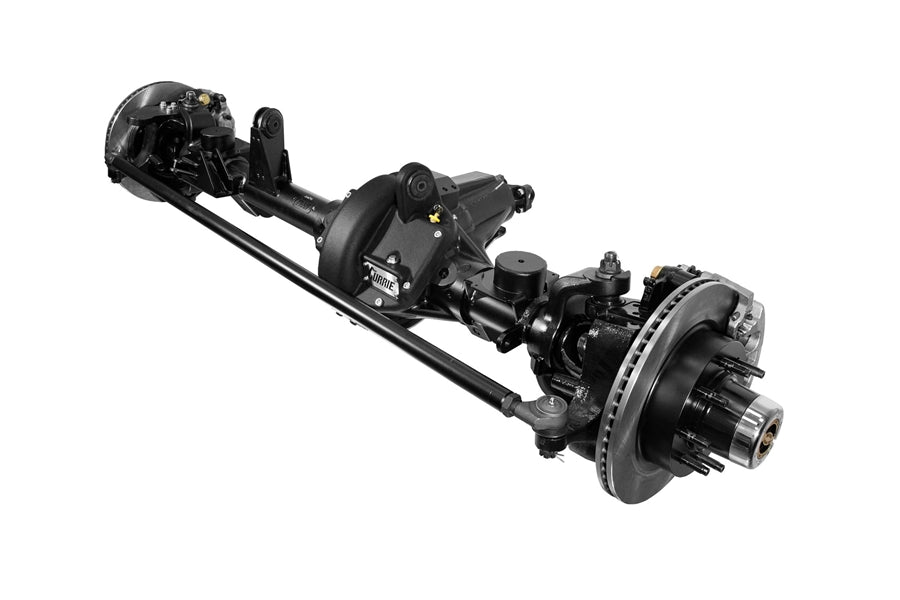

The Currie Extreme 60 1-ton front and rear axle assemblies for the Jeep Wrangler JK and JKU are designed for severe off-road use with up to 42-inch tall tires and V8 horsepower. The reinforced Extreme 60 center castings feature thick walls and heavy webbing, providing ultimate gear strength and durability. The front axle incorporates complete 1-ton inner and outer steering assemblies, and the rear implements 40-spline axles and billet full-floating hubs to deliver ultimate reliability. If you seek out the most challenging routes and most formidable obstacles to conquer, the Extreme 60 axles are a natural choice.

• Currie Exclusive High-Pinion, High-Clearance Center Section with Rotated Cover
• Load-Bolt Limits Ring Gear Deflection for Maximum Torque-Handling Capacity
• Hardened Steel Skid Plate
• High Volume, Flow-Thru Pinion Oiling System
• Heavy-Duty forged 1-Ton Inner and Outer Knuckles
• 1-Ton Unit Bearings, Retains Stock JK ABS Sensors
• Upgraded 35-Spline Heat-Treated 4340 Chromoly Axle Shafts
• Large Dual-Piston Calipers and 13-Inch Rotors Increase Brake Capacity by 140% Over Stock JK
• Heavy-Duty Tie Rod 1 3/8-Inch Heat-Treated Tube With 1-Ton Ends
• High Articulation Johnny Joints® Installed in the Upper Bushing Mounts
• Equipped for Ram Assist or Steering Stabilizer
• Optimized for 3 to 6-Inchs of Lift
• Heavy-Duty Steel Brackets
• 70-Inchs Wide Between Wheel Mounting Surfaces
• 5.38 Gear Ratio
• ARB Air Locker
• 8 on 6.5-Inch Bolt Pattern and 9/16 Studs
• Powder Coated Satin Black
• Includes stackable shipping crate Ships filled with Currie differential fluid

Specifications

• Axle Type: Dana 60
• Bolt Pattern: 8x6.5
• Brakes: 13.00in
• Ratio: 5.38
• Spline Count: 35
• Tubing Diameter: 3.50in
• Width: 70in

Warranty: 2 Year Warranty

Fitment: JK
