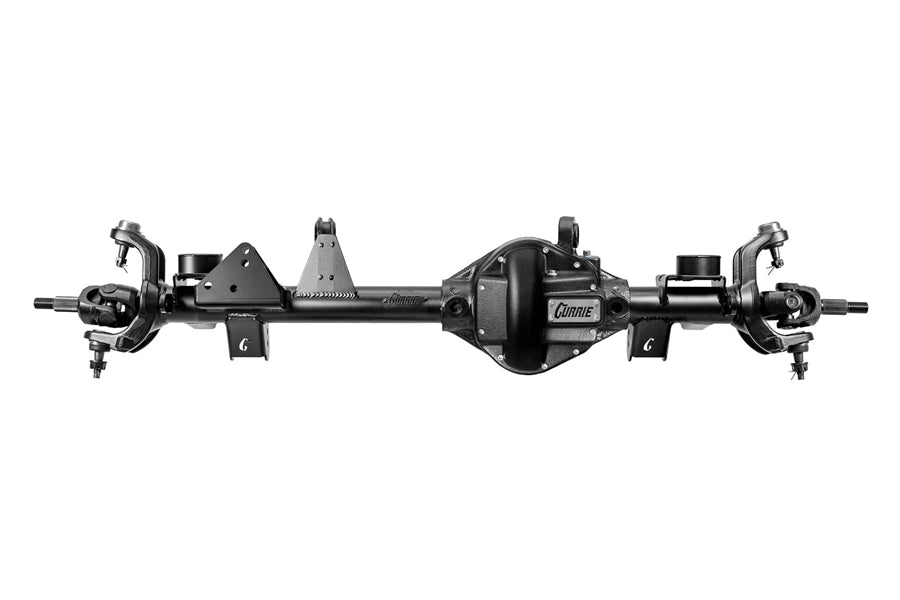

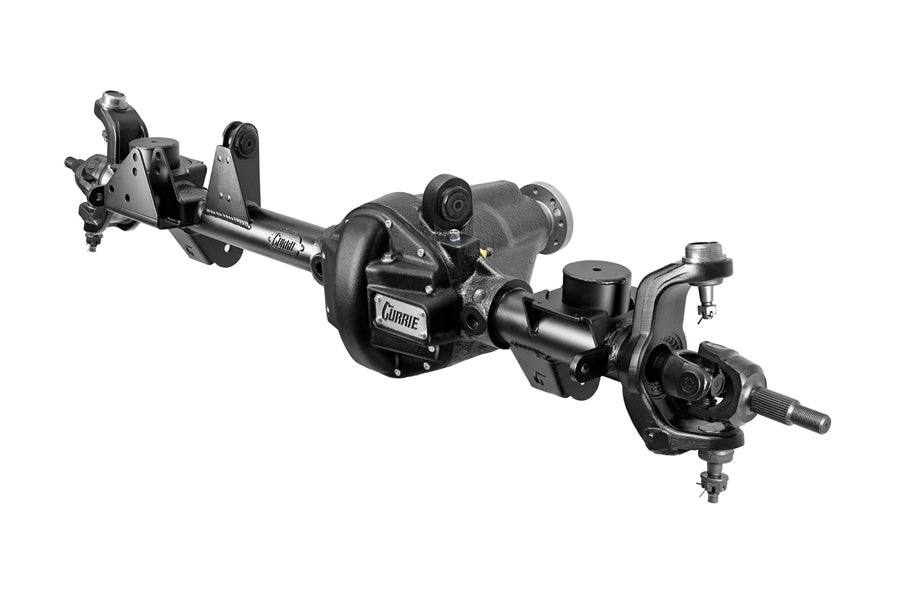

The Currie 44 front axle assembly is a direct bolt-in assembly for 2007 thru 2018 Jeep Wrangler JK/JKU Vehicles. Featuring significantly stronger center casting, axle tubes, forged knuckles, and chromoly axles, the Currie 44 is designed for heavy off-road with up to 37-inch tall tires.

Details:

• 65.375-Inch Stock JK Width
• High-Pinion Heavy-Duty Center Section
• 4340 Chromoly Axles with Larger Rubicon U-Joints
• 3 in. diameter, .5 in. Wall DOM Axle Tubes
• Massive Forged Currie Inner Knuckles
• Rock-Proof Currie Nodular Iron Cover
• Satin Black Powder Coat Finish for Long Lasting Protection
• Steering Geometry and Brackets Setup for Lifted Vehicles
• Shipped Fully Assembled and Ready for Factory Outer Steering Components

Specifications:

Center Section   Currie 44 high-pinion nodular-iron center section with thicker walls and webbing

Differential Carrier          Compatible Lockers - ARB RD117 or Eaton ELocker 19977-010

Gear Set              Larger/stronger Dana 44 8.8” late model JK ring and pinion set

Pinion Yoke        1310 (stock size) pinion companion flange

Differential Cover            Currie nodular-iron cover with gasketed fill plug with dipstick, Red

End Forgings       Currie heavy-duty forged steel inner C’s

Axle Tubes          3 inch diameter, .5 wall DOM tube

Axles      Currie Performance 4340 chromoly 30/32-spline inner/outer axles with 1350 u-joints (Compatible with Motive Gear/Ten Factory Rubicon replacement axles)

Suspension Brackets       Heavy gauge 3/16” laser cut steel brackets

Control Arm Mounts       Upper control and lower control arm mounts are 3/16 thick, one-piece construction; lower mounts feature an integrated skid plate

Geometry            Optimized for 4” lift kit with 5 degrees of pinion angle to reduce driveshaft angle and 5 degrees of caster for improved steering

Width    65.375 inches between wheel mounting surfaces (stock JK width)

Wheel Bolt Pattern          5 on 5 inch

Notes

• Computer Programming: 2012 and newer vehicles require a computer programmer, such as the AEV ProCal Module, to reset the gear ratio and tire height in the vehicle's computer for the proper function of the vehicles stability control and transmission shift points
• Differential Carriers: The center section is designed to use standard Dana 44 carriers/lockers (ARB RD117 or Eaton ELocker 19977-010). Not compatible with the factory Rubicon carriers.
• Outer Knuckle Assemblies: The Currie 44 is designed to reuse the complete stock JK outer knuckle assemblies from the ball joints out (knuckles, hubs, disk brake calipers, and rotors)
• Overall Width: Axle width is 65.375 inches (stock JK width) between wheel mounting surfaces
• Tire Size: Recommended maximum 37-inch tire size due to the inherent limitations of the stock brakes, wheel bearings, and axle u-joints

Specifications

• Axle Type: Dana 44
• Bolt Pattern: 5x5
• Ratio: 5.13
• Tubing Diameter: 3.0in
• Width: 65.375in

Warranty: 2 Year Warranty

Fitment: JK
