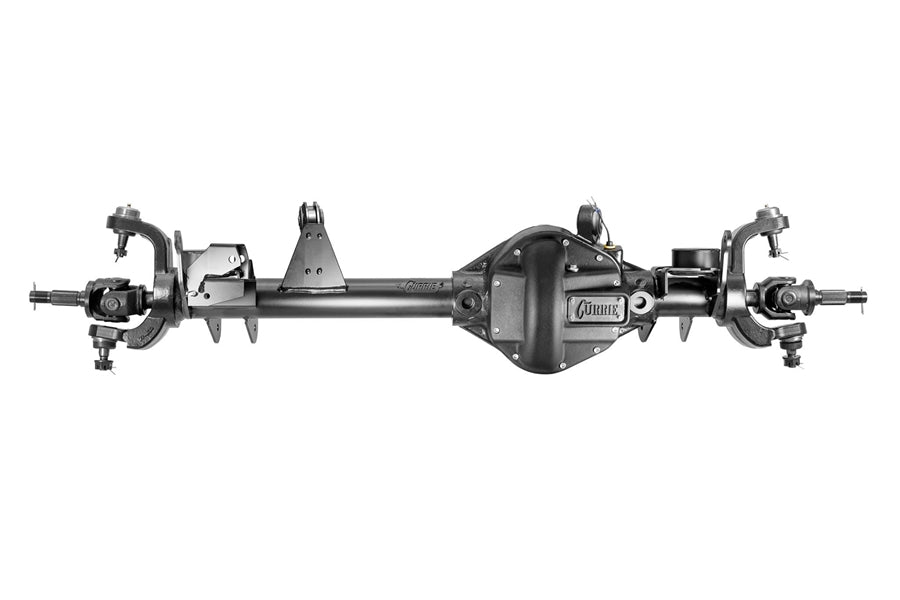

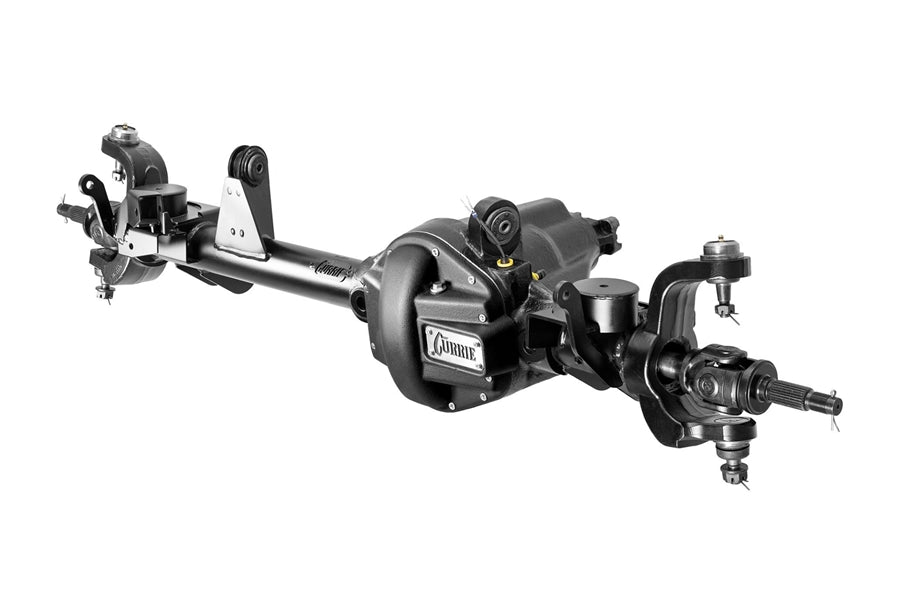

The Currie 44 front axle assembly for Jeep TJ/LJ/XJ vehicles is a direct bolt-in assembly with superior strength in a lightweight package designed for heavy off-road use. The Currie 44 is designed for heavy off-road with up to 37-inch tall tires and features a significantly stronger center casting, axle tubes, forged knuckles, and chromoly axles, the Currie 44 is ready for off-road adventure.

Features:

• 4.56 Gear Ratio and Detroit Truetrac Locker
• Currie 44 high-pinion nodular iron center section features 14 lbs of reinforcement over a stock 44 with thicker walls and webbing to deliver superior strength and rigidity.
• Large 3 in. diameter x .5 in. wall axle tubes (left) are more than 2.5 times stronger than the stock Dana 30 tubes (right).
• Currie heavy duty forged inner knuckles (right) are massively stronger than the stock knuckles (left) and are designed for severe off-road use with up to 37” tall tires.
• Genuine Dana Spicer ball joints provide original equipment quality, consistency, and long maintenance-free service life.
• Currie Performance 4340 chromoly axles provide superior end-to-end strength over OEM carbon steel axles. Black oxide coating helps protect from surface corrosion for improved durability.
• Rock-proof Currie nodular iron front cover protects expensive internals and adds structural support to the housing's face flange.
• Black satin powder coat finish adds long-lasting protection against rust and corrosion to keep your Currie 60 looking its best.

Notes

• Outer Knuckle Assemblies: The Currie 44 is designed to reuse the complete stock TJ/TJ/XJ outer knuckle assemblies from the ball joints out (knuckles, hubs, disk brake calipers and rotors)
• Differential Carriers: The center section is designed to use standard Dana 44 carriers (ARB RD117 or Eaton E-locker 19977-010).
• Overall Width: Axle width is 60.250 inches (stock TJ width) between wheel mounting surfaces
• Tire Size: Recommended maximum 37-inch tire size due to the inherent limitations of the stock brakes, wheel bearings, and axle u-joints. Tires larger than 31-inches may require vehicle modification for proper clearance.

Specifications

• Axle Type: Dana 44
• Ratio: 4.56
• Tubing Diameter: 3.0in
• Width: 60.5in

Warranty: 2 Year Warranty

Fitment: TJ/LJ
