RockJock's Johnny Joint Rod Ends have been a staple in the off road industry since 1996! Available universally for builders or found in our RockJock suspension components, John Currie’s proven formula provides a reliable, greasable, rebuildable joint that is capable of dramatic articulation in off-road applications, while still providing smooth, cushioned, quiet performance during on-road use.

Johnny Joints are available as a forged rod end with various RH and LH thread sizes from 3/4 in. up to a massive 1 1/2 in. thread! Additionally, weld-on versions of all Johnny Joints are available for fabricators.

Specialty joints, such as polished stainless steel, long body and bent forgings and application specific machined joints are all available for custom builder use.

All sizes of joints offer a standard or a narrow width joint body which provide different levels of overall articulation range (30 plus degrees on a standard body and up to 40 plus degrees on a narrow body). The narrow body’s 1 piece bushing will provide a slightly firmer ride.

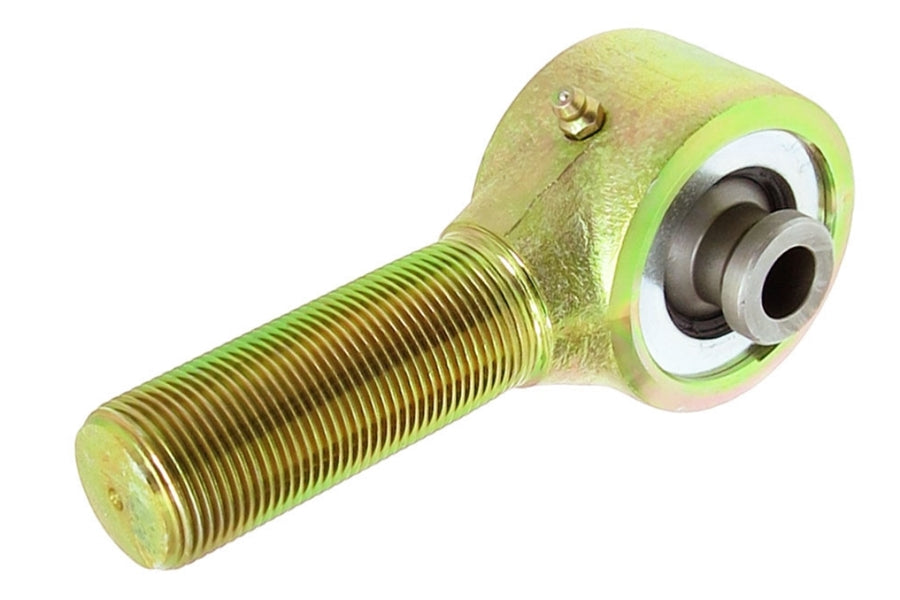

This 2 1/2 in. Johnny Joint incorporates our 1 1/4 in.-12 LH thread, narrow width, forged body and a 2.365 in. overall width x .562 in. thru-bolt hole pivot ball.

Greasing is handled externally, via the installed 1/4 in.-28 zerk fitting.

Rod End Fits:

Universal Application

JL Wrangler (2-door) – R upper control arms

JL Wrangler Unlimited (4-door) – R upper control arms

JK Wrangler (2-door) – R upper control arms

JK Wrangler Unlimited (4-door) – R upper control arms

96-up Toyota 4-Runner (Gen 3/4/5) - R lower control arm

03-22 Toyota FJ Cruiser – R lower control arms

98-07 Toyota 100 Series (Land Cruiser) - R upper and lower control arms

03-up Lexus GS - R lower control arm

Rod End Features:

• 39 degrees of articulation capability
• Forged steel construction
• 2 1/2 in. O.D. x 1.69 in. wide joint outer barrel
• 3.250 inches of 1 1/4 in.-12 LH threads
• 4.94 inches from CL of joint to end of threads
• 1-piece bushing internals
• 2.365 in. wide x .562 in. thru-hole pivot ball
• Zerk fitting for greasing
• Fully assembled, ready for use right out of the box

Notes:

See  Jam Nut to fit this joint

See Weld-In Bung and Jam Nut are required

See  RockNut is required

Johnny Joints require non-synthetic, hi-moly lube grease

Applicable Johnny Joint Tool for this Rod End

*** IMPORTANT *** - joints require greasing at normal intervals, but they do not hold a lot of grease! Over greasing can cause damage to the joint. To prevent damage, use only a hand pump grease gun, do not expect the joint to take a lot of grease and DO NOT use pneumatic or electric grease guns!

Specifications

• QTY: 1
• Thread Size: 1.25in
• Threaded Shank: LHT
• Type: Johny Joint
• Wide Ball Center: 2.365in

Warranty: 2 Year Warranty

Fitment: JL/JK
