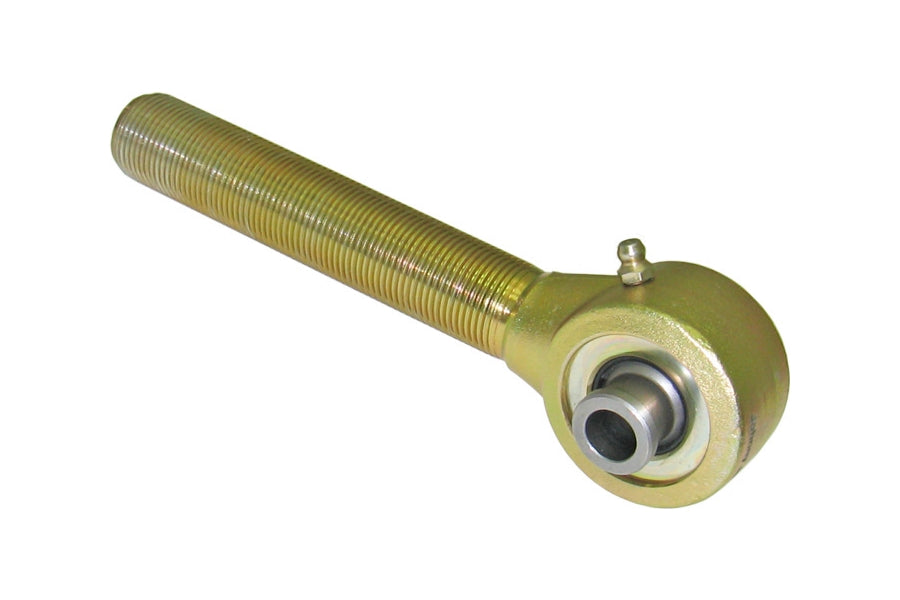

The all-new narrow 2" forged Johnny Joint® rod end was designed originally for use in our JK front and rear track bars, however, it is now available separately as a replacement part or for use in any type of universal application for custom builders. This joint is a male rod end style forging that accepts Johnny Joint® internals that are unique to this narrow joint. This version features a .5625" thru bolt hole (for use with a 14mm bolt), a 1.600" mounting width, 2 1/4" of 1"-14 right hand threads on the shank and is greaseable through the outer shell. Finished in gold zinc plating.

Rod End Fits:

Universal Application

Rod End Includes:

(1) Forged Johnny Joint Assembly (5 in. long threaded shank)

Rod End Features:

• 28 degrees of articulation capability
• Forged steel construction
• 2 in. O.D. x 1.20 in. wide joint outer barrel
• 5 inches of 1 in.-14 RH Threads
• 6.430 inches from CL of joint to end of threads
• 1-piece bushing internals
• 1.600 in. wide x .562 in. thru-hole pivot ball
• 1/4-28 in. zerk fitting for greasing
• Fully assembled, ready for use right out of the box

Specifications

• Location: Front and Rear
• QTY: 1
• Type: Johny Joint

Warranty: 2 Year Warranty
