This is a complete York compressor air supply kit for a 2000-06 Jeep® Wrangler™ TJ or a Jeep® Wrangler™ LJ with a 4.0L engine and A/C.  It provides everything needed to install an endless supply of engine powered air.

The kit incorporates a York air compressor to the front of the engine so it runs off of the main belt.  The ORO exclusive single belt design takes advantage of the stock automatic belt tensioner.  This prevents excessive wear on the water pump bearings that can occur with other manufacture's kits.  When the engine is running the system automatically turns the compressor on whenever the air pressure is low enough.

This kit includes an an oil removal filter with an auto-drain that returns oil back to the compressor.  Also included are two quick couplers with stainless steel mounting brackets for tire inflation or running air tools.  The couplers mount on each side under the dash utilizing the door strap retaining bolts.

Features:

• Continually delivers proper belt tension, warm or cold
• Locates the compressor and alternator closer to the engine providing more air box clearance
• Modification of the stock air box is not required
• Mounts the compressor slightly lower than other manufacturer's kits for more hood clearance
• The additional idler pulley is a stock Jeep component
• Utilizes a common serpentine belt available at any parts store
• Designed to work with larger sized alternators that support welders

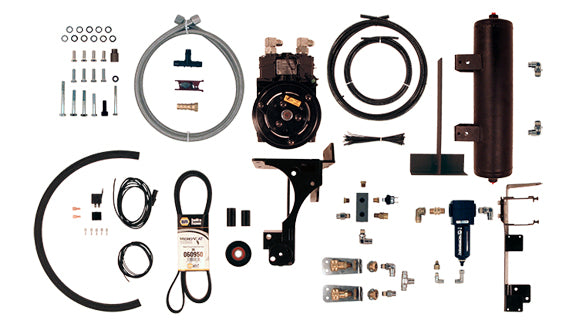

This kit includes:

• a brand new York compressor with clutch and roto-lock fittings
• the ORO compressor bracket kit
• the ORO in-cab Quick Couple kit
• a low profile one gallon steel air tank
• a Norgren aluminum oil removal filter with auto drain and bracket
• a longer belt with an idler pulley for proper routing
• a braided stainless steel high temperature teflon air line
• a high flow brass check valve
• an all aluminum anodized air manifold
• a 110 PSI on/150 PSI off air pressure switch
• an adjustable air pressure relief valve
• 10 feet of 1/4" and 35 feet of 3/8" nylon tubing plus tubing cutter
• Norgren 'push-to-connect' air fittings
• Relay, mounting base, wire, and connectors
• miscellaneous fittings, hardware, and cable ties needed for installation

Note that you will need to add a pressure regulator to this kit if for use with air lockers or other air powered accessories such as SwayLOC.

Specifications

• Hardware Included: Yes
• Installation: Mounted
• Mount Included: Yes
• Pressure Switch Included: Yes
• Qty: 1
• Tank Included: Yes
• Maximum Load: 150psi

Warranty: 1 Year

Fitment: 2000-06 TJ
