Please note that this light does NOT include a harness and the applicable harness to this light is found here.

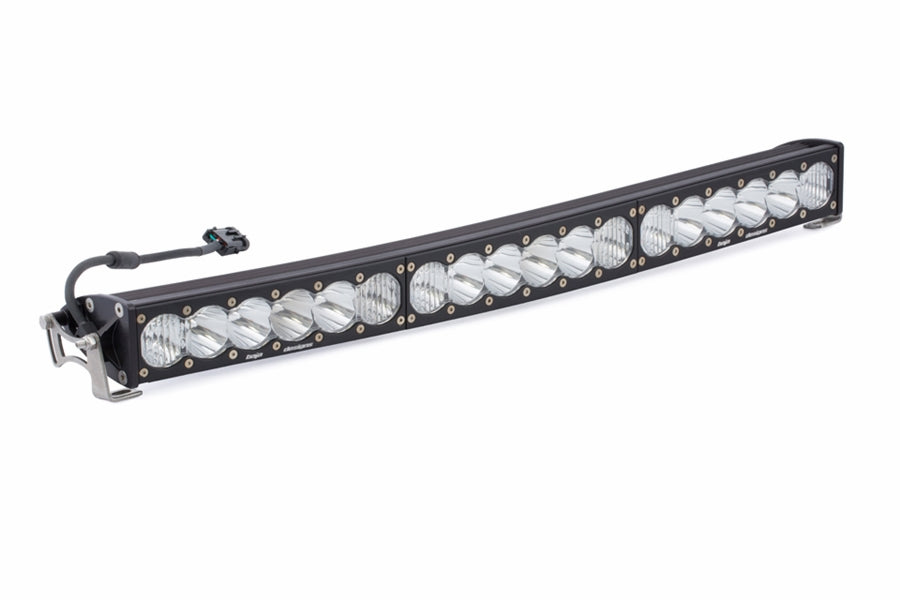

The NEW OnX6+ Arc Series is the perfect combination of performance and aesthetics. Beautifully arched to fit the contour of your bumper or windshield, the Arc Series redefines the capabilities of the standard/traditional LED light bar. At an impressive 32,070 lumens, the brightest just got up to 69% brighter.  The OnX6+ LED light bar also integrates Baja Designs’ trademarked High-Speed Spot™ reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet. An industry-first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.

This bar is equipped with BMT – Battery Management Technology

• Elimination Of Flickering at Low Voltage
• Added Protection to Vehicle Wiring and Systems
• Protection from Dangerous Current Spikes


The OnX6+ LED Light Bar is BRIGHTER. BOLDER. BETTER.

Baja Designs Features:

• Satisfaction Guarantee – 30 Day Money Back Guarantee
• Limited Lifetime Warranty – Complete Purchase Protection
• uService® – Replaceable Lenses And Optics
• ClearView® – All The Light, Right Where You Need It.
• MoistureBlock™ – Waterproof, Rain Proof, Submersible
• CopperDrive® – Only LED Driven At 100%
• 5000K Daylight – Less Driver Fatigue, Natural Color

Specifications:

• Lumens: (High) 32,070 (Low) 25,610 Utilizing 18 Cree LEDs
• Wattage/Amps: (High) 278W / 21.7A (Low) 222W / 17.1A
• Dimensions: 30" x 4.29" x 2.69"
• Weight: 11.45 lbs
• LED Life Expectancy: 49,930 Hours
• Front Lens: Hard Coated Polycarbonate
• Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
• Bezel: Billet Machined Aluminum
• Hardware & Bracket Material: Stainless Steel
• Exceeds MIL-STD810G (Mil-Spec Testing)
• Built-In Overvoltage Protection
• IP69K (Waterproof up to 9ft & Pressure Washable)
• IK10 Compliant (Mechanical Impact Testing)

Includes:

• OnX6+ Arc 30” LED Light Bar
• Mounting Brackets
• Hi-Low Dongle

Patterns:

Driving/Combo: Maximum trail coverage in a single light.  The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Driving:  BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2) (Also available in amber)

High-Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road.  The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
?
Racer Edition Spot:  A 4° beam focus for illumination WAY down the trail or road.  The Racer Edition Spot is for speeds of 110+ MPH or if you need to see a mile+ away. This is the latest version for our Team Enlightened racers and is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 5+)

Specifications

• Beam: Driving/Combo
• Body Color: Black
• Bulb Type: LED
• Color Temperature: 5000K
• Length: 30.00in
• Lens: Polycarbonate
• Mounting Bracket Included: Yes
• Qty: 1
• Wiring Included: No

Warranty: Limited Lifetime Warranty
