This lighting and wiring setup has been tested on the Jeep with the steel bumper to take the guess work out of installation! The LP6 Pro is a 6-inch powerhouse featuring a total of 10,300 lumens and a 200° spread of useable LED light. The LP6 features 8,600 forward projecting lumens and 1,700 lumens of dedicated peripheral lighting courtesy of our patented Integrated Peripheral Technology (IPT).

To keep your light performing at its highest potential, the LP6 integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel through the front of the housing, over the rear heat sinks - drastically improving cooling capacity and performance.

With an amber day-time running light, low power, and high power mode, the LP6 will fulfill all your lighting needs.

Specifications (Per Light):

• Forward Projecting Lumens: 8,600 Utilizing 6 LEDs
• Forward Projecting Wattage/Amps:  90W / 6.5A
• IPT Lumens: 1,700 Utilizing 4 LEDs
• IPT Wattage/Amps: 15W / 1.0A
• Backlight Wattage/Amps: 4.14W / 0.3A
• Dimensions: 6.5" Height / 6.5" Width / 3.2" Depth
• Weight: 4.2lbs
• LED Life Expectancy: 49,930 Hours
• Front Lens:  Hardcoated Polycarbonate
• Housing:  Hard Anodized Machined Aluminum
• Bezel: Billet Machined Aluminum
• Hardware & Bracket Material: Stainless Steel
• Exceeds MIL-STD810G (Mil-Spec Testing)
• Built-In Overvoltage Protection
• IP69K (Waterproof up to 9ft & Pressure Washable)
• IK10 Compliant (Mechanical Impact Testing)

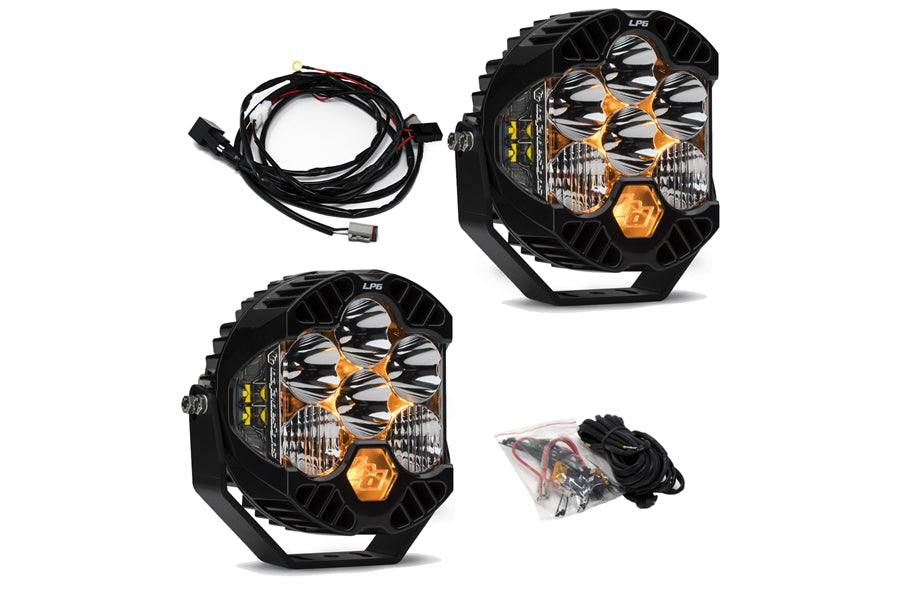

Includes:

• QTY (2) LP6 LED Light
• QTY (1) Wiring Harness
• Zip ties

Specifications

• Beam: Combination
• Body Color: Black
• Bulb Type: LED
• Lens: Polycarbonate
• Qty: 2
• Wiring Included: Yes

Warranty: Limited Lifetime

Fitment: JT/JL Rubicon w/ Steel Bumper
