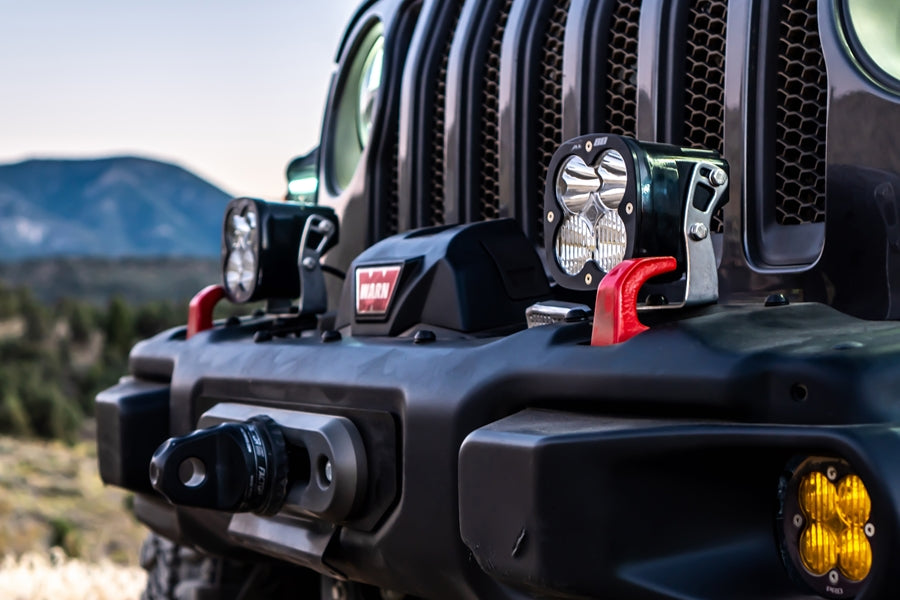

This lighting and wiring setup has been tested on the Jeep with the Rubicon Steel bumper to take the guess work out of installation! Choose to take your off-road lighting to the next level with BD’s 9,500 lumen XL80. Similar to BD’s XL Pro model, the XL80 offers a 20% dimming feature, a powder coated housing and an anodized bezel. However, this is where the similarities end. The XL80 features a very powerful LED for greater visibility and increased brightness. As always, Baja Designs offers a 30 Day Satisfaction Guarantee, and Limited Lifetime Warranty.

Specifications (Per Light):

• Lumens: 9,500 Utilizing 4 Cree LEDs
• Wattage/Amps:  80W / 5.50A
• Dimensions: 4.43" x 3.65" x 4.43"
• Weight: 2.45 lbs
• LED Life Expectancy: 49,930 Hours
• Front Lens:  Hardcoated Polycarbonate
• Housing:  Hard Anodized & Powder Coated Cast Aluminum
• Bezel: Billet Machined Aluminum
• Hardware & Bracket Material: Stainless Steel
• Exceeds MIL-STD810G (Mil-Spec Testing)
• Built-In Overvoltage Protection
• IP69K (Waterproof up to 9ft & Pressure Washable)
• IK10 Compliant (Mechanical Impact Testing)

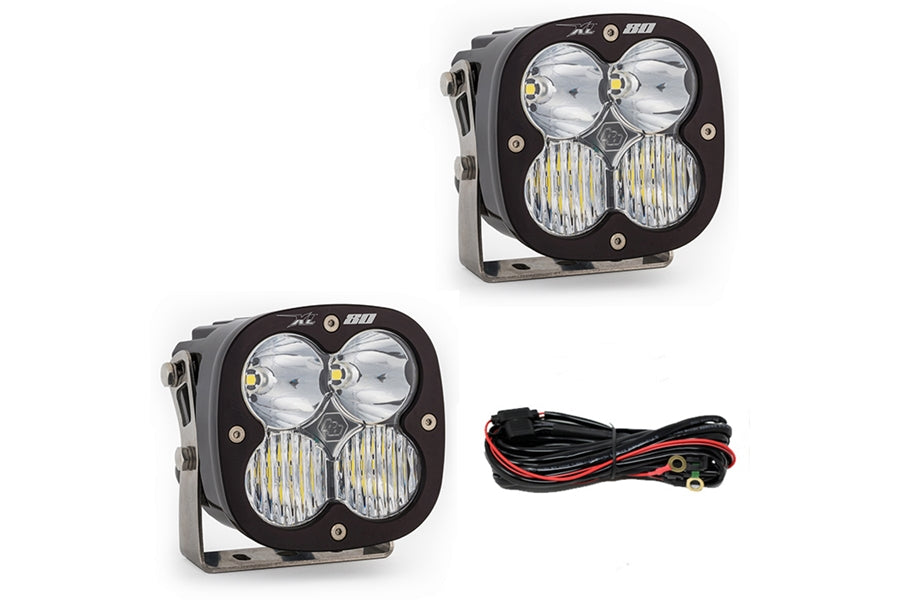

Includes:

• 2x XL80 LED Light
• Mounting Bracket
• Wiring Harness
• Zip Ties

Specifications

• Beam: Combination
• Body Color: Black
• Bulb Type: LED
• Lens: Polycarbonate
• Mounting Bracket Included: Yes
• Qty: 2
• Wiring Included: Yes

Warranty: Limited Lifetime

Fitment: JT/JL Rubicon w/ Steel Bumper
