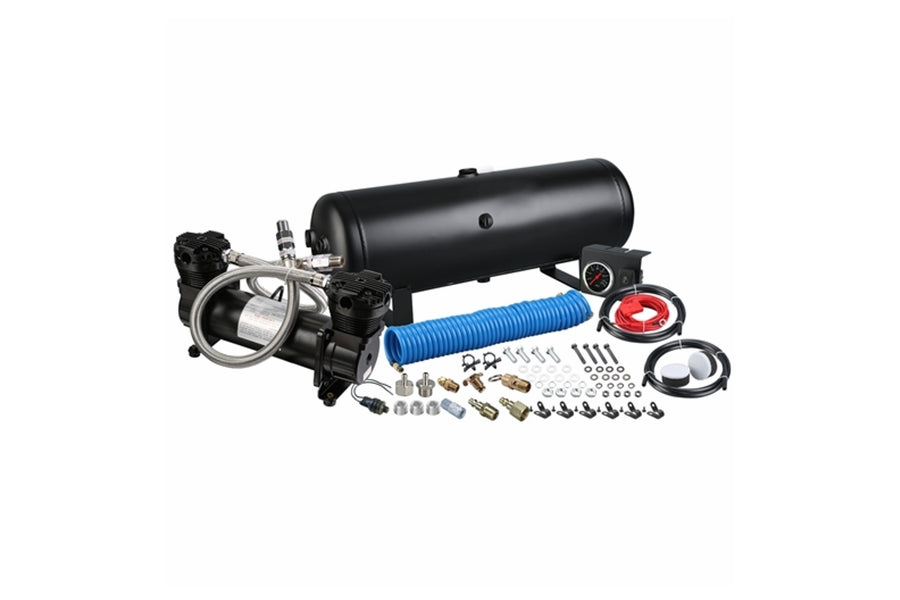

Bulldog Winch

145PSI 4.2CFM On-Board Kit

• 145 PSI Maximum Working Pressure
• 4.2 CFM Twin Head Compressor with IP67 rating for under-body mounting
• 2.5 Gallon Air Tank (or 5 Gallon) with 19.7ft airline and quick-connect
• In-Cab Gauge and ON/OFF switch
• Use to power lockers, air horns, small air tools, and more
• Use to inflate tires and more
• Includes everything to install a quality onboard air system

​Compressor and related parts:

• 4.2 CFM/200 PSI air compressor
• IP67 air filter elements remote inlet air filter assembly with 6.5ft air hose clips and lead hose clip
• 20ft power wire with in-line fuse
• 60A relay mounting hardware

Tank and Related Parts:

• 2.5 Gallon or 5 Gallon / 200 PSI rated air tank with 10 bungs (8x1/4NPT, 2x3/8NPT)
• 19.7ft air hose
• Sealed pressure switch 110 PSI ON / 145 PSI OFF
• 1/4NPT Drain Cock
• 1/4NPT Safety Valve 180 PSI
• 1/4NPT Quick Connect stud(F)
• 1/4NPT Quick Connect stud(M)
• 1/4NPT Compression Fitting
• 1/4NPT Quick Connect Coupler(F)
• 150 PSI In-Cab Analog Pressure Gauge, mechanical with ON/OFF Switch and Mounting Bracket
• Mounting Hardware

Specifications

• Hardware Included: Yes
• PSI: 145PSI
• Qty: 1
