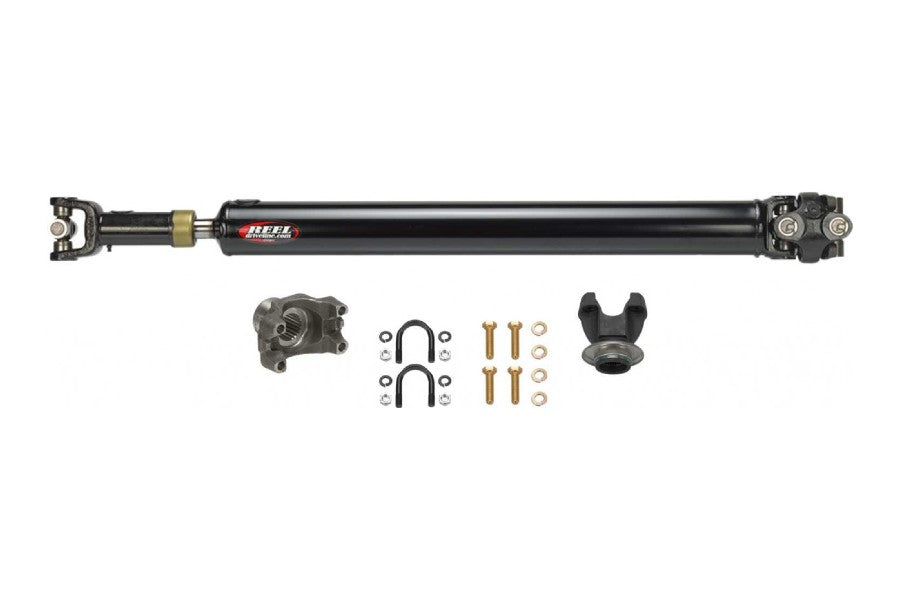

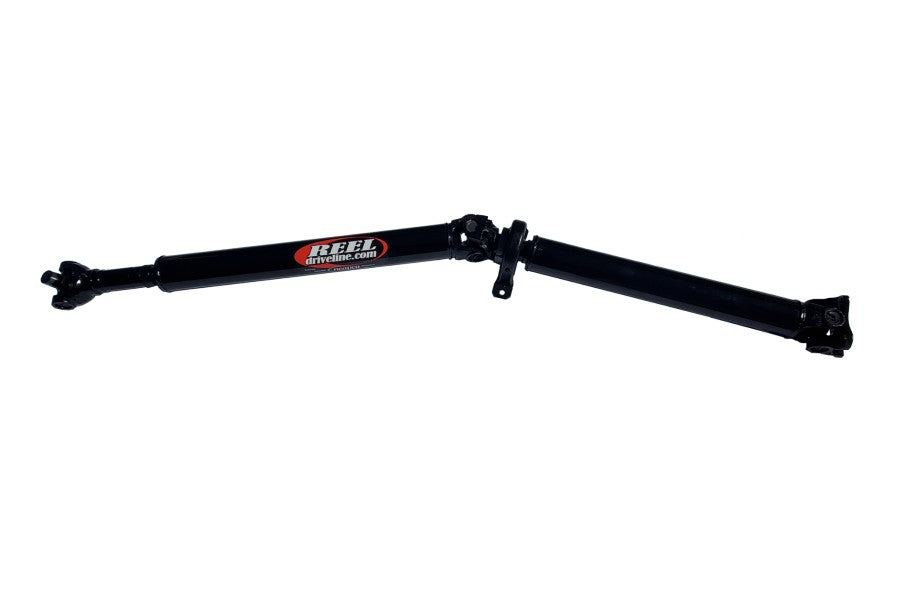

1350 Heavy Duty rear driveshaft for 4-door Jeep JT Gladiator models with a manual transmission. Replacement Driveline. This System is stronger than O.E. type applications recommended for stock to 6 1/2 inch lift.

J.E. Reel Drivelines are designed to work with 2 1/2 inch and 4 1/2 inch lifts from most lift manufacturers. Lifts above 4 1/2 inches or long arm lifts must be measured for driveline length. It is best to measure all drivelines if possible.

The purchaser shall be responsible for determining all design and/or specification parameters and the suitability of any particular product for its intended use.

Note:

• JT Gladiator 2018 Powertrain is installed at 9.25 Degrees. This means the Transfer Case rear output slopes down to the rear axle, and the front output slopes away from the front axle. This model does not come with a CV and is suitable for stock height up to a 2 1/2-inch lift.

Details:

• Collapsed Length 35.75 inch
• Ride Height 28.5 inch
• Extended Length 38.75 inch
• U Joint Style 1350 W/O ZERK
• Tube size 3.00X .083 Inch
• Pinion/Yoke 3-4-3528R
• T/C Yoke 3-1-32R

Kits Include:

• Pinion Yoke Transfer Case
• Yoke Retaining Hardware Fasteners Included

Specifications

• Mounting Type: OE Replacement
• Size: 1350

Fitment: JT
