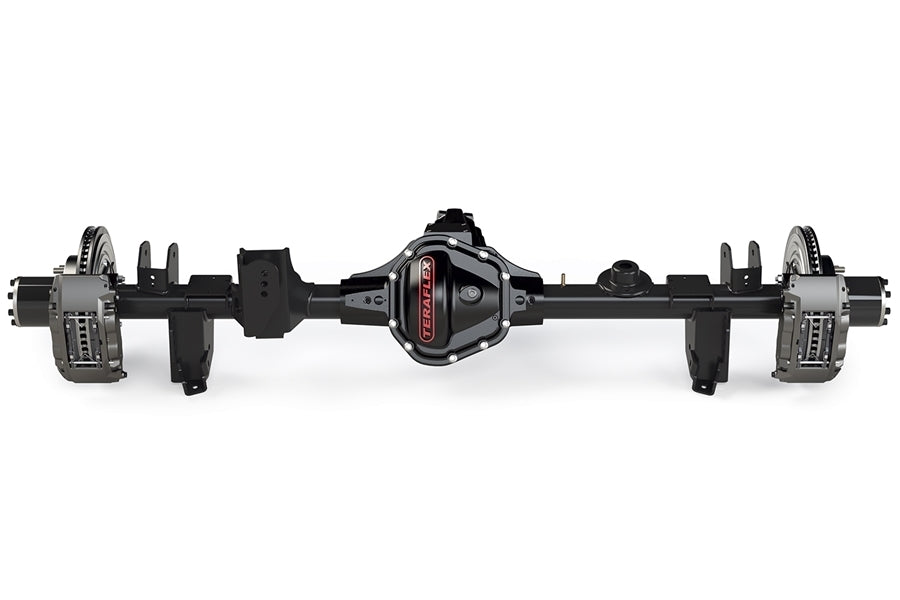

Teraflex Rear Full-Float CRD60 HD Axle Features:

• Extreme duty full-float design
• 3.25" O.D. x 0.375" wall DOM axle tube for superior strength vs. weight
• 70" WMS-WMS and 8x6.5" wheel bolt pattern
• Fixed spindle mount hub assembly
• Tera CRD60 specific high-pinion rear axle housing design
• Includes 1350 series pinion yoke
• 35-spline inner and outer axle shafts
• HD bearing caps increase rigidity and reduce ring & pinion distortion
• Constant Radius Design (CRD) provides maximum ground clearance regardless of pinion angle
• Built-in skimmer" cuts ring gear oil halo and forces it into the pinion bearings
• Outer pinion bearing pocket features a renewable oil reservoir that sends cool oil to the pinion bearing
• Oversized outer pinion bearing handles increased torque and high-load conditions
• High-capacity housing holds maximum amount of oil
• Pre-installed inner axle seals
• Ductile cast iron housing w/ increased rib gussets
• HD ductile iron differential cover w/ increased cover mounting area
• Integrated lower control arm skid plates
• High-flow oil passages
• Reinforced rear track bar mount w/ multiple mounting locations
• UV protected triple-stage powder coat for corrosion resistance
• 1/4"-thick CNC laser cut axle brackets for extreme strength
• Pre-installed upper control arm bushings
• Proper pinion angle and raised track bar bracket for lifted JL applications
• Pre-tapped hole on spring perch for bump stop extensions
• Pre-drilled holes for limit straps and lower spring retainers
• Retains all JT ESP, ABS, and speedometer sensor capability
• 100% engineered, designed, and built in the USA w/ new components

Upgrade your Jeep Wrangler JL Stock Axles

Get the ultimate in axle strength and ground clearance for your Jeep Wrangler JL/JLU Including Rubicon models with the 70" CRD60 HD Rear Axle w/ Full-Float & 5.38 R&P & ARB Locker (0-6" Lift) from Teraflex. Perfect for replacing bent broken or damaged axles and can also be used as a direct bolt-on upgrade for Jeep owners looking to beef up the stock axles. Axle housings feature smooth profile surfaces and axle tubes that come complete with all the necessary mount brackets and sensors. You also have the choice of pre-installed Super 60 ring & pinion gears, ARB air locker, and full-float outer axles as well as inner axle shafts, and sensors. The exclusive Constant Radius provides high ground clearance that is unaffected by pinion angle adjustments. Compatible with all Super 60 gear ratios for extreme duty applications requiring additional ring & pinion strength. Get your Jeep looking tough and performing better today.

Includes:

• ARB Air LockerSpicer Super 60 ring & pinion
• Spicer bearings and install kits
• Full-float axles
• 35-spline inner and outer axle shafts
• 1350 series pinion yoke
• Dana 60 / Tera CRD60: Differential Cover Kit

Specs:

• Fits 0-6" Lift
• WMS-WMS: 70"
• Axle Tube: 3.25" x 0.375"
• Wheel Bolt Pattern: 8x6.5"
• Gear Ratio: 5.38

Note: Below is a list of Requirements & Recommendations as budget and build preference allow.

Optimize your setup by upgrading your steering system with our heavy-duty steering components. The factory steering system may also be reused.

HD Forged Drag Link Kit (0–6” Lift) (# 1863920).

HD Chromoly Tie Rod Kit (0–6” Lift) (# 1863910) — included in our Tera60 HD Front Axle Assemblies.

REQUIRES adjustable control arms for caster angle adjustments.

JL Options:

Long Control Arm & Bracket Kit – 8-Arm (3–6” Lift) (Alpine IR: JL2: # 1310512 or JL4: # 1310510) (Alpine: JL2: # 1316012 or JL4: # 1316010).

Short Control Arm Kit – 8-Arm (0–4.5” Lift) (Alpine IR: # 1416510 or Alpine: # 1416610).

Specifications

• Axle Style: Full Float
• Axle Type: Dana 60
• Bolt Pattern: 8x6.5
• Locking Hubs: Yes
• Ratio: 5.38
• Spline Count: 35
• Tubing Diameter: 3.25in
• Width: 70in

Warranty: 1-Year/Unlimited Mileage Warranty

Fitment: JL
