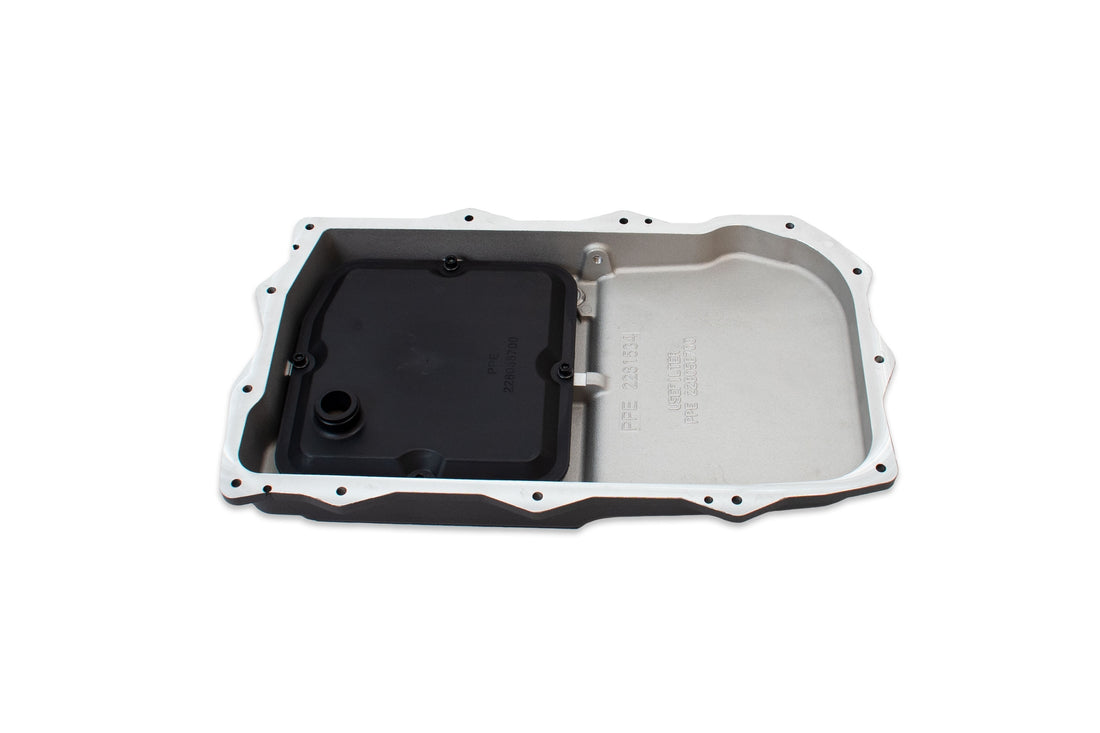

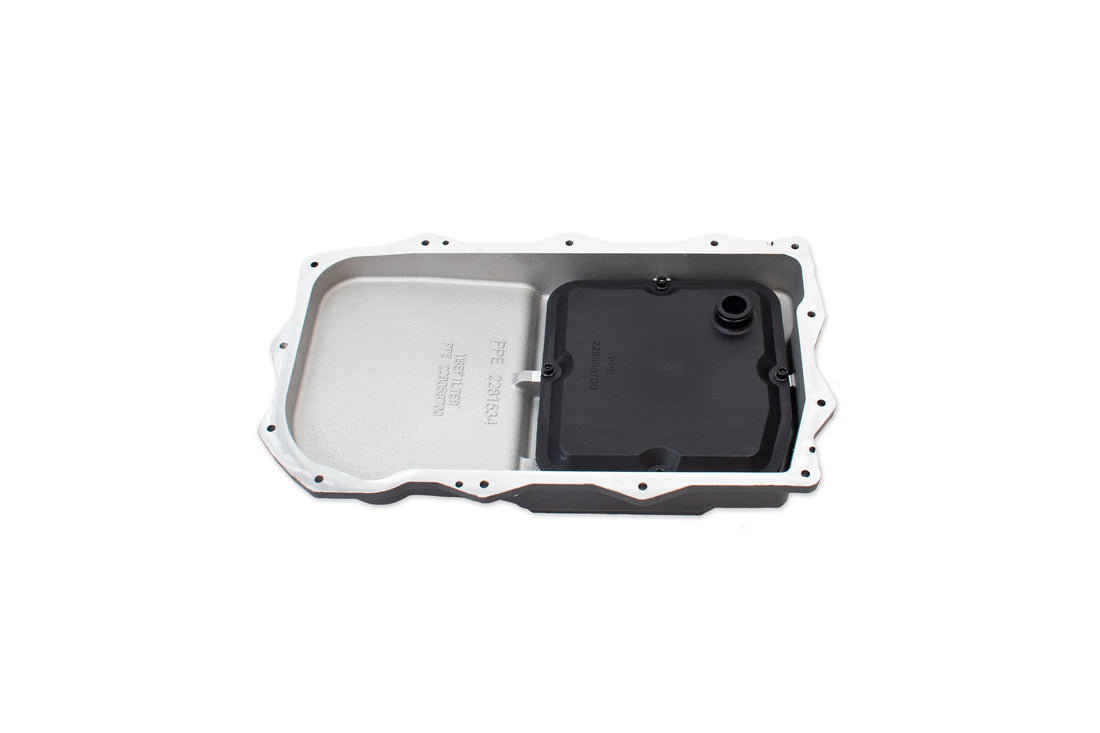

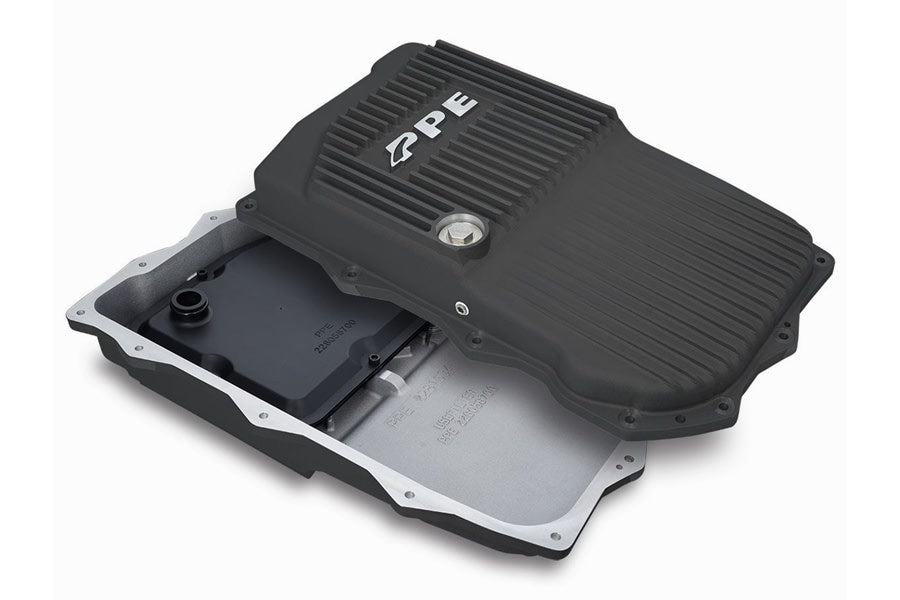

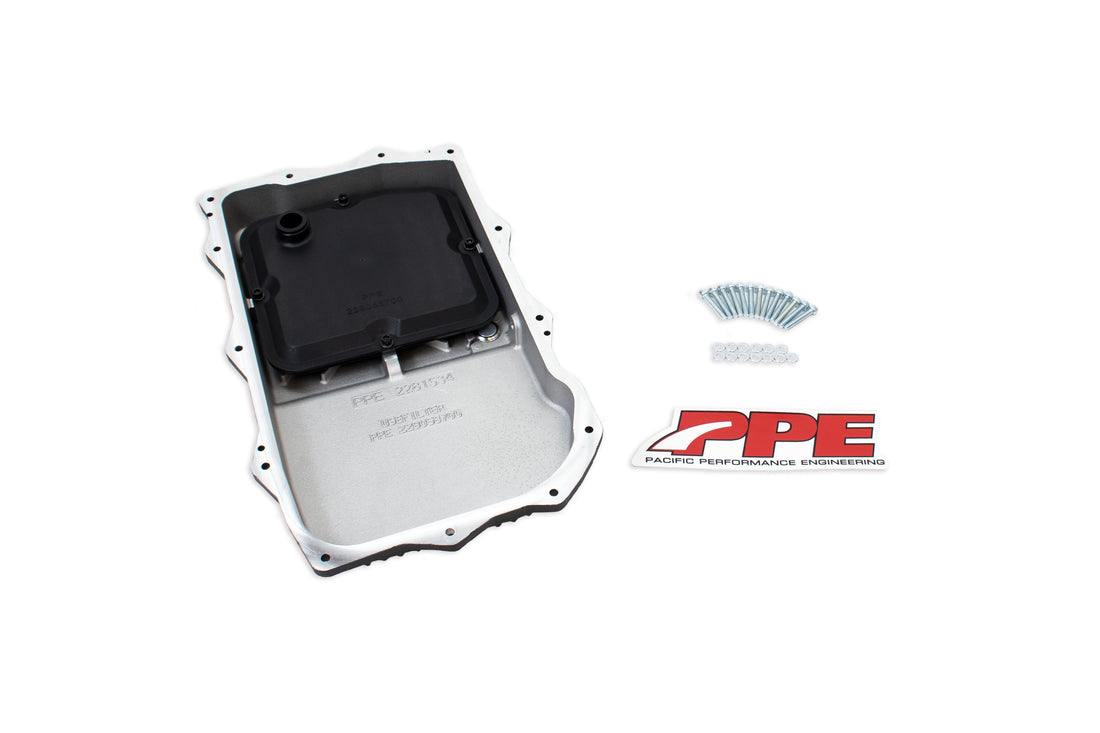

Heavy-Duty Cast Aluminum Transmission Pan for 2018-2025 Jeep JL/JT 2.0L/3.0L/6.4L, 850RE/8HP75

Excessive heat kills transmission life. As temperature rises, transmission fluid viscosity decreases, weakening the lubricating film that protects gears and bearings. This could cause premature wear and potential failure. Cast from high-grade A356.0-T6 aluminum alloy, the PPE transmission pan offers one quart of additional fluid capacity, ensuring long-lasting heat management and performance.

The deep external cooling fins maximize the heat-wicking surface area, effectively dissipating heat to keep your transmission cool under pressure. These fins also add strength to the bottom of the pan and enhance impact resistance.

The built-in baffles at the bottom of the pan increase contact between the fluid and the cast-aluminum surfaces, enhancing heat transfer. These baffles also reduce fluid sloshing, ensuring consistent fluid pickup and stable transmission performance. Together with the longitudinal external fins, they form a stiff, cross-bracing structure, distributing loads better and increasing impact resistance.

The factory plastic pan and its non-replaceable filter must be discarded with every fluid change. In contrast, a replaceable filter bolts directly inside the PPE pan, making fluid services easier and more cost effective. The PPE drain plug is equipped with a powerful, high-temperature-rated neodymium magnet that captures ferrous metal particles, providing additional protection for your transmission.

Keep your 8-speed running longer, healthier, and cooler with PPE.

Features:

• Premium A356.0-T6 heat-treated cast aluminum alloy – a high-strength, thermally conductive material
• Precision-cast using permanent steel molds for a smooth, consistent finish and high dimensional accuracy
• Increases fluid capacity by 1 quart for higher thermal capacity
• Tall 3/4-inch external fins improve heat dissipation, lower transmission fluid temperature, and increase impact resistance
• Half-inch internal baffles enhance heat absorption and minimize fluid sloshing
• External fins and internal baffles work together to form an ultra-strong Cross-Bracing structure
• 304 Stainless steel drain plug with built-in high temperature rated neodymium magnet and Viton O-ring
• Equipped with a 1/8-inch NPT port with pre-installed NPT plug
• Integrated filter supports ensure proper filter placement
• Compatible with OEM gasket

Specifications

• Transmission Type: 850RE or 8HP75
• Type: Transmission Pan
• Color: Black
• Material: Aluminum
• QTY: 1

Warranty: Limited Lifetime

Fitment: JT/JL 2.0L/3.0L/6.4L
