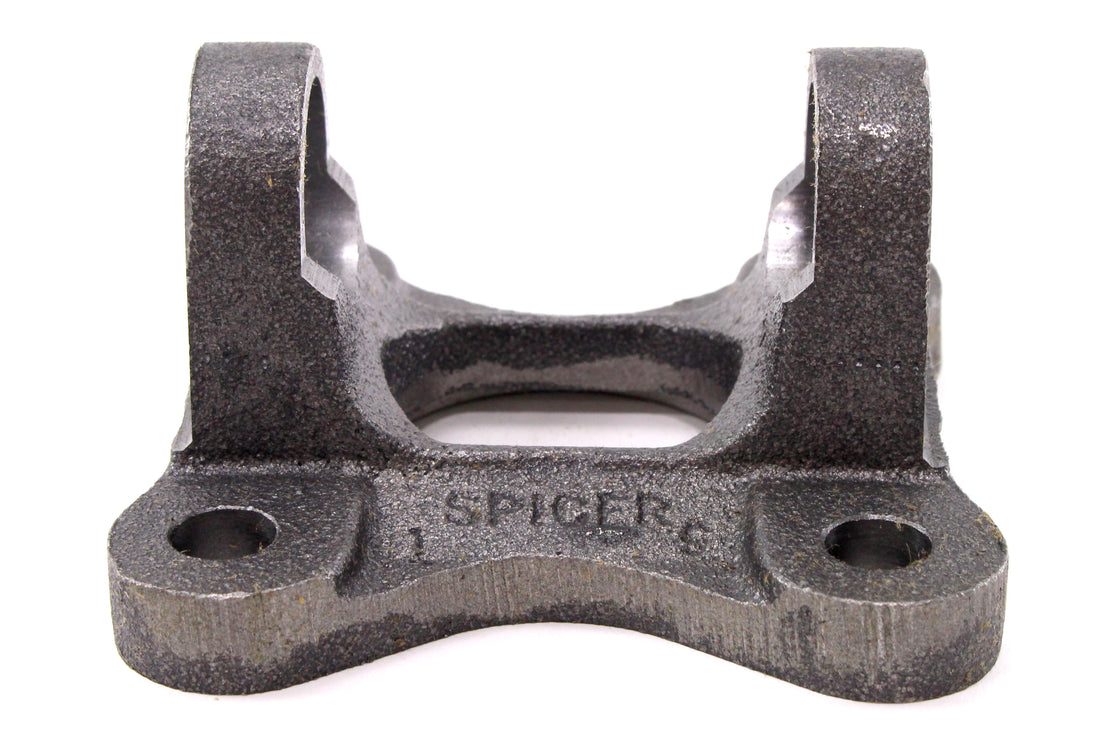

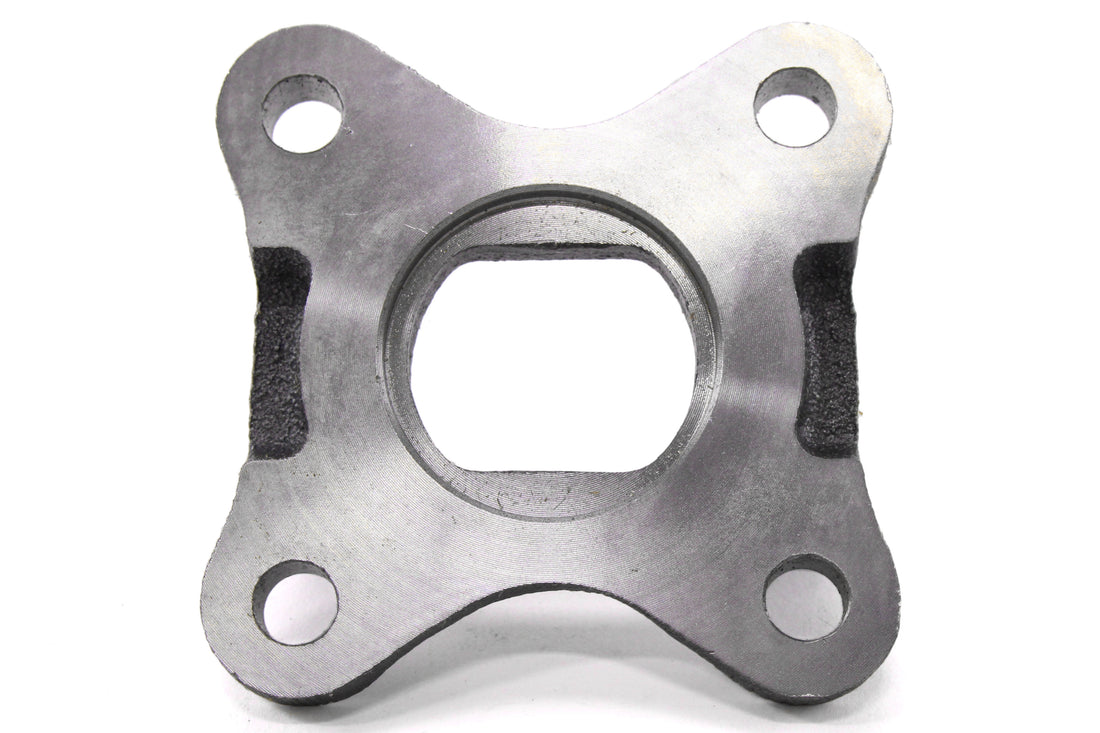

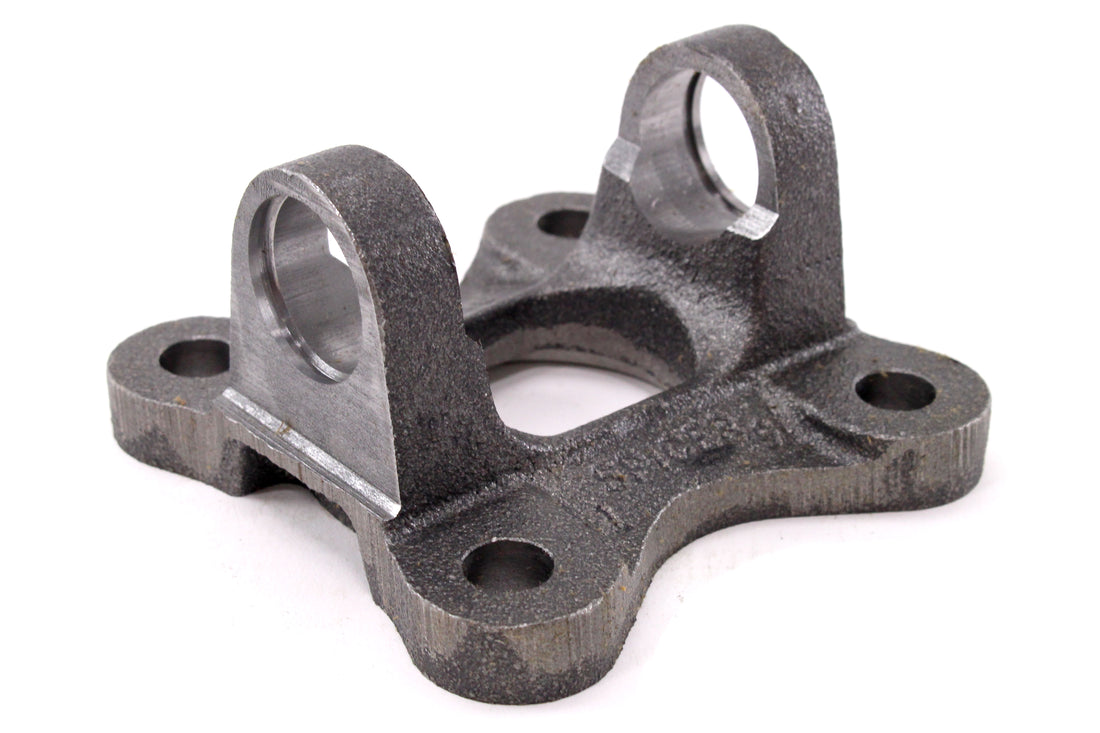

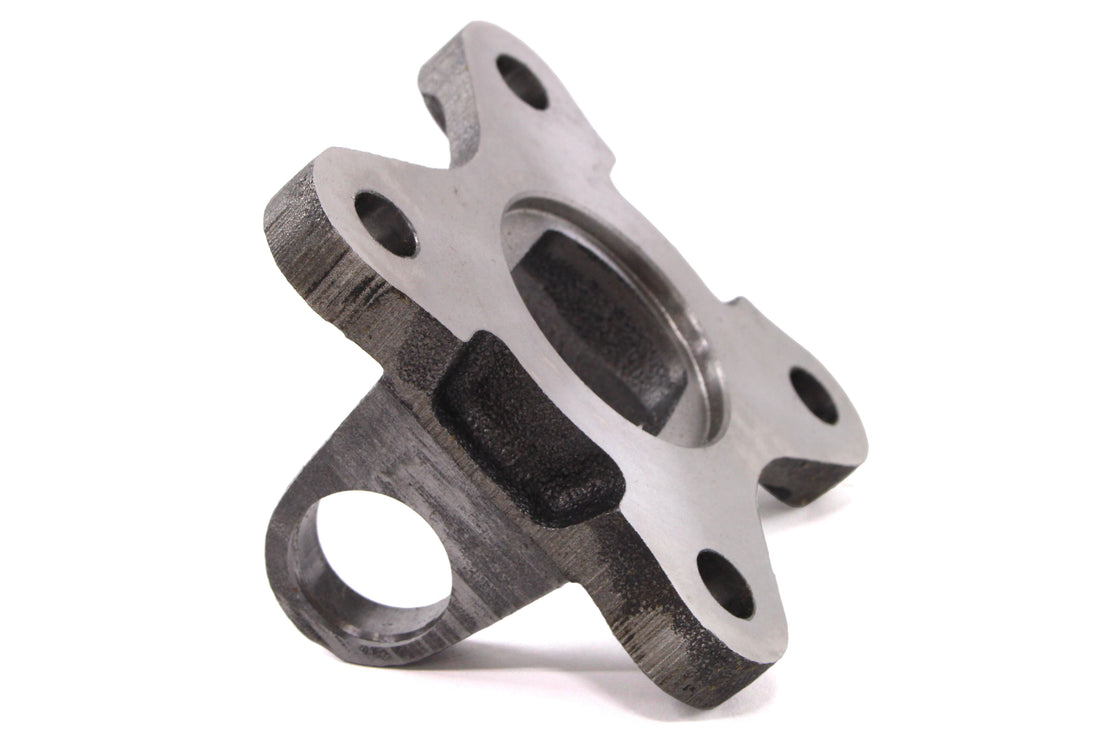

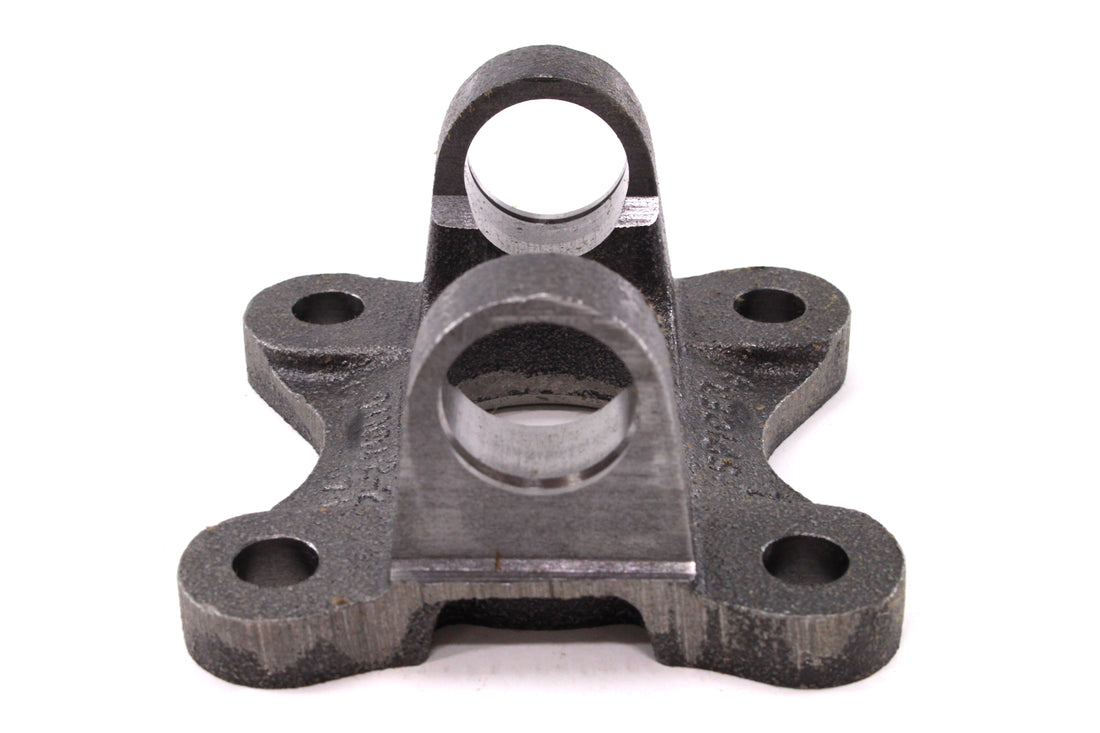

The Spicer Drivetrain Components 2-2 1379 1310 Series Ford Flange Yoke has been designed to fit the large Ford bolt pattern found on 8.8 inch rear ends.

Here are additional specs and measurements:

 ·    Swing diameter: 5.219”
·    Bolt hole diameter: .484 inches
·    4 Bolt holes
·    Bolt holes drilled
·    Center pilot hole diameter: 2”
·    Female center pilot hole
·    Series 1310
·    Outside snap ring style
·    U-joint width between snap rings: 3.219”
·    U-joint bearing cap diameter: 1.062”
·    Center of u-joint bore to face of flange: 1.625”
·    Ford large bolt pattern: 3”

Specifications

• CV Yoke: 1310
• Diff Type: Ford 8.8
• QTY: 1

Warranty: 1 Year Limited
