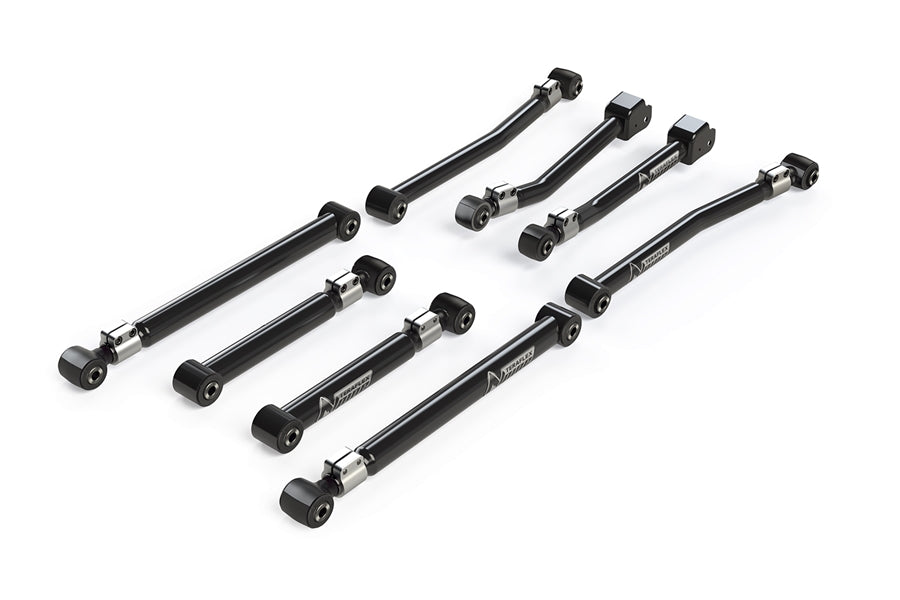

The Alpine Short Control Arm is designed to provide maximum performance on JT Gladiator models with 0-4.5" lifts. It bolts to the factory control arm mounting brackets and provides a full range of movement that will not restrict articulation or flex off-road. The high-quality, dependable, maintenance-free factory-style bushings provide excellent NVH damping and ride quality. Can be added to any existing suspension lift.

Includes:

Alpine Control Arms – Adjustable:
• Front Upper/Lower – pair
• Rear Upper/Lower – pair

Teraflex Alpine Short Control Arms Features:

• Constructed from durable 42mm x 4mm wall DOM tube for maximum strength
• Bolts to the factory control arm mounting brackets
• Re-centers axles in the wheel well for proper suspension movement. Can also be used to increase wheelbase
• Full range of movement will not restrict articulation or flex off-road
• High-quality, dependable, maintenance-free, factory-style bushings provide excellent NVH (noise, vibration, and harshness) damping and ride quality
• Zero maintenance forged threaded joints for smooth quiet flex
• Premium black e-dipped coating on tube and forged rod end housing provides superior durability and corrosion resistance
• Anodized 6061-T6 aluminum clamp collar to secure rod end after length adjustment
• Install and drive simple bolt-on installation – no welding required
• TeraFlex Lifetime Warranty against defects

Control Arm Specs:

Front Upper:

Tube Diameter & Wall = 42mm x 4mm

Factory Length = 20.185"

Min. Length = 20"

Max. Length = 21"

Both Ends = 14mm Bolt

Front Lower:

Tube Diameter & Wall = 42mm x 4mm

Factory Length: 24"

Min. Length: 24"

Max. Length: 25.25"

Both Ends: 16mm Bolt

Rear Upper:

Tube Diameter & Wall = 42mm x 4mm

Factory Length = 16-3/8"

Min. Length = 16-1/8"

Max. Length = 17-3/8"

Both Ends = 16mm Bolt

Rear Lower:

Tube Diameter & Wall = 42mm x 4mm

Factory Length = 23-3/4"

Min. Length = 23-1/2"

Max. Length = 24-3/4"

Both Ends = 16mm

Note: Alignment required.

Specifications

• Adjustable: Yes
• Arm Material: Steel
• Color: Black
• Location: Front and Rear
• Qty: 8
• Required Lift: 0-4.50in

Warranty: Limited Lifetime

Fitment: JT
