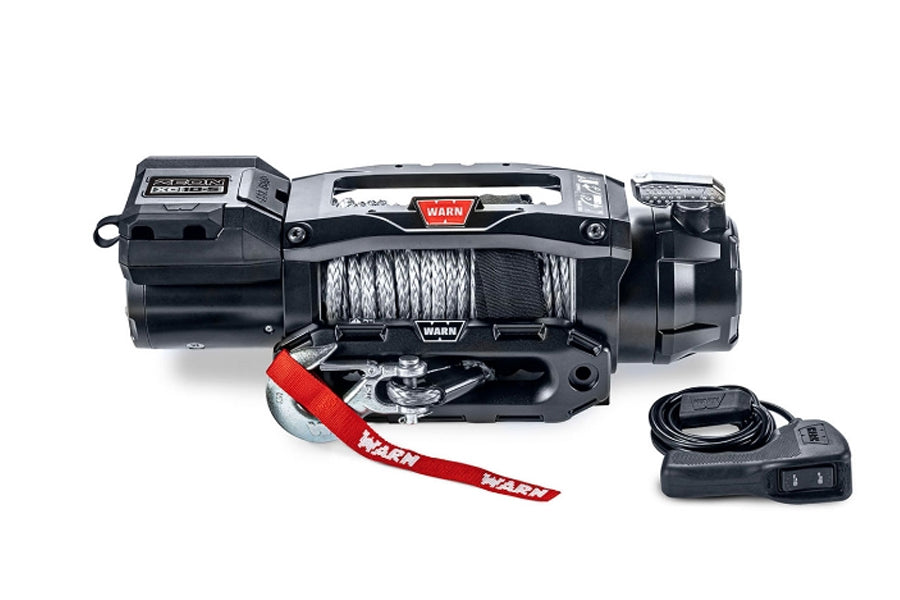

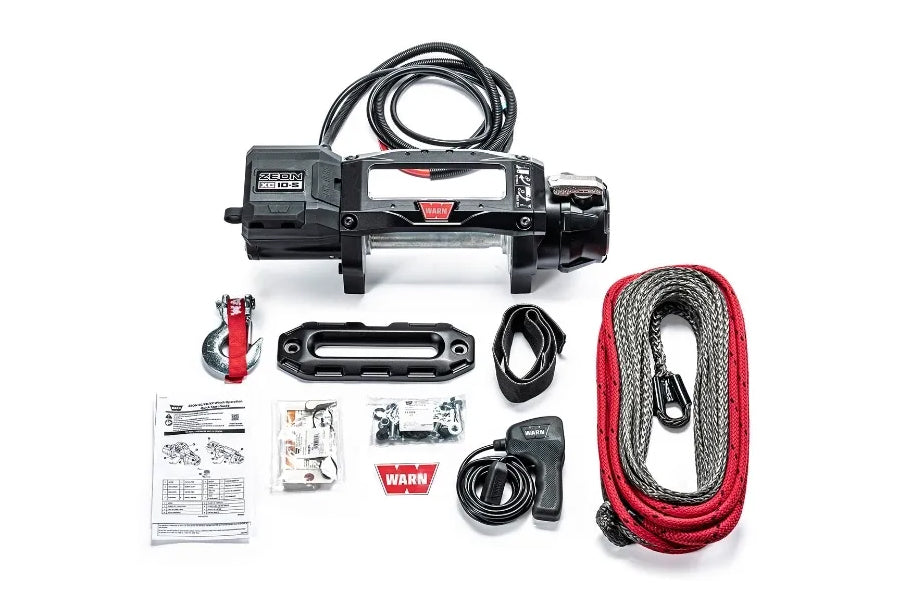

10,000 lbs. single-line pulling capacity. Equipped with 100’ of 3/8” Spydura synthetic rope, Epic hawse fairlead, and ruggedized corded remote.

The compact, low-profile ZEON XC winch delivers unmatched performance with best-in-class line speed and capacity. Engineered, tested, and assembled at our Clackamas, Oregon facility, ZEON XC is a premium, ultra-reliable recovery tool that’s backed by the industry’s leading warranty.

• All the performance of the ZEON XD winches but in a more compact size for mounting in tighter spaces
• High-performance, high-efficiency motor and geartrain delivers blazing fast no-load line speeds of up to 40 ft/min—the fastest in its class
• Reliable waterproof construction features o-ring rubber sealing. The entire winch is IP68 submersion and IP69K high pressure spray rated
• Corrosion resistant black fasteners meet the highest OEM-grade specifications
• All-new low-profile control box with WARN exclusive Albright contactor and bus bars for ultimate control, reliability and efficiency
• Remote socket can be relocated up to 9” away from control pack without disassembly
• Control pack can be relocated off of the winch using one of WARN’s control pack relocation kit (PN 111872: ZEON XC 31” relocation kit; PN 111991: ZEON XC 78” relocation kit)
• Motor can be rotated up to 90° forward; control pack moves with motor; transmission can be clocked up to five different positions
• The ZEON XC fairleads can be utilized for both feet down and feet forward installations — no separate offset fairlead is needed
• Large diameter aluminum-alloy drum reduces rope wear and helps to dissipate brake heat. The patented rope anchor system is the strongest on the market, and allows for easy rope installation
• Automatic load-holding cone brake offers excellent control and holding strength
• Exceptionally durable corded remote with 12’ lead
• Industry-leading warranty: Limited lifetime mechanical, seven year electrical—all backed by a global service network

Specs:

• Rated Line Pull (Single Line) - 10,000lbs (4536 kg)
• Motor - 12V DC, series wound
• Electrical controls - Albright Contactor
• Remote Control - Remote Switch, 12" (3.7m)
• Geartrain - 3-stage planetary
• Gear Ratio - 141:1
• Clutch (freespooling) - Rotating Ring Gear
• Brake - Automatic, six segment mechanical cone
• Drum diameter/Length - 3.15”/9.0” (80mm/229mm)
• Rope - 3/8” x 100’ (9.52mm x 30m) Spydura synthetic
• Fairlead - Epic Fairlead - black anodized, forged aluminum hawse
• Recommended Battery - 650 CCA minimum for winching
• Battery leads - 2 gauge, 72” (1.83m)
• Zeon Finish - Satin-black powder coat
• Corrosion Resistance - 408 hour salt spray, OEM grade fasteners
• Ingress Protection - IP68/IP69K rated waterproof
• Warranty - Limited lifetime mechanical, 7 years electrical
• Zeon Dimensions - length: 22.06" (560.3mm), height: 7.83" (198.8mm)
• Mounting Bolt Pattern - 10" x 4.5" (254mm x 80mm)

Specifications

• Gear Ratio: 141:1
• Line Material: Spydura Synthetic
• Rated Capacity: 10,000lbs

Warranty: Limited Lifetime
