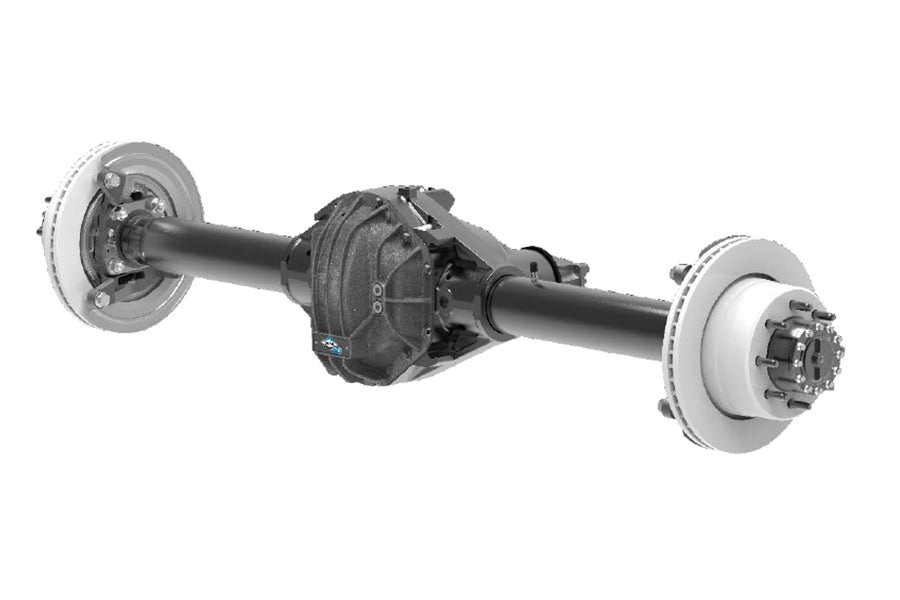

All the features; none of the brackets. The new Ultimate Dana 80 Bracketless Crate Axles allow for installation in virtually any application. The axles include Spicer performance ring and pinion gears in ratio 5.38. Ultimate Dana 80 crate axles feature the Dana-engineered Dana 80 housing while the tubes are ultra-strong 4” tubes with 5/8” wall thickness containing Spicer 40 spline nickel chromoly steel axle shafts. Get the performance and dependability of Ultimate Dana 80 for your custom build today!

Ultimate Dana 80 Bracketless Crate Axles Feature:

• Spicer 40 spline SAE-4340 nickel chromoly steel axle shafts
• Full-float design
• Dana-engineered carrier with ribbed housing design
• ARB Air Locker
• Heavy-duty 8 x 6.5”-wheel bolt pattern
• Spicer 1410 Strap-style/Half-round end yoke
• Axle tubes: 4" outside diameter / .65" wall thickness
• Genuine Made in the USA Spicer ring and pinion gearing - 5.38 ratio
• Spicer ring and pinion gearing: 11.3" (287 mm)
• 69” Width (1752.6 mm) - wheel mount surface to wheel mount surface

Specifications

• Axle Style: Full Float
• Axle Type: Dana 80
• Bolt Pattern: 8x6.5
• Ratio: 5.38
• Spline Count: 40
• Width: 69in

Warranty: 1 Year Warranty
